Step 1. Customer Complaint Analysis

WARNING: This page is about a different variant/trim than selected.

Record details of the problem (failure, complaint) and how it occurred as described by the customer. For this purpose, use of such an inspection form as shown in the following table as an example will facilitate collecting information to the point required for proper analysis and diagnosis.

NOTE: The form is a standard sample. It should be modified according to characteristics of each market.

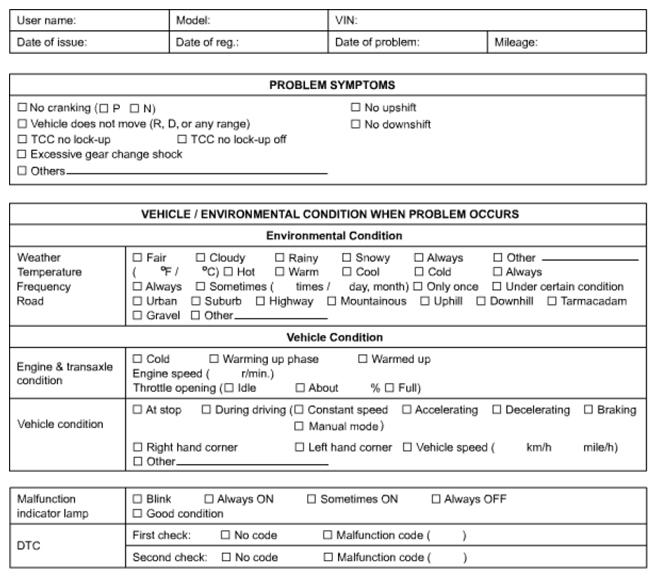

Fig 1: Customer Problem Inspection Form
G06527810Courtesy of SUZUKI OF AMERICA CORP.
