Transfer Control Device: Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Switch the 4WD shift switch to 2WD and set the transfer assembly to 2WD.
  2. Disconnect the transfer control device connector.
  3. Remove the breather hose from the transfer control device.
  4. Remove the bolts and detach the transfer control device.

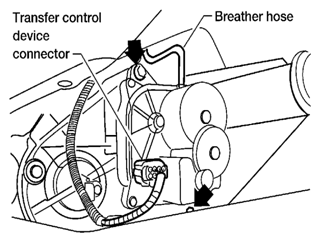

    Fig 1: Locating Bolts And Transfer Control Device
    G06444849Courtesy of SUZUKI OF AMERICA CORP.
