Disassembly (A/T Models)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the snap ring.

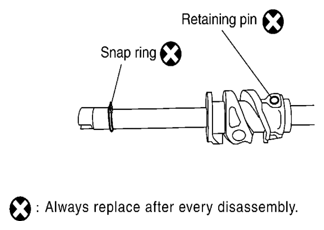

    Fig 1: Identifying Snap Ring And Retaining Pin
    G06444881Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove the retaining pin.
  3. Remove the drum cam from the control shift rod.
  4. Remove the retaining pin from the L-H shift rod.

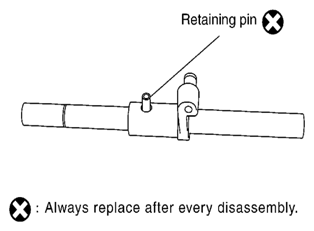

    Fig 2: Identifying Retaining Pin
    G06444882Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the 2-4 shift bracket.
  6. Remove the retaining ring from the 2-4 shift fork using suitable tool.
    Fig 3: Removing Retaining Ring From 2-4 Shift Fork
    G06444883Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove the fork guide collar and 2-4 shift fork spring from the 2-4 shift fork.
