Assembly (A/T Models)

WARNING: This page is about a different variant/trim than selected.
  1. Install clevis pin and shift collar to L-H shift fork after assembling them.
    CAUTION: Use caution when installing L-H shift fork, clevis pin or shift collar.
  2. Install clevis pin and shift collar to 2-4 shift bracket after assembling them.
    CAUTION: Use caution when installing 2-4 shift bracket.
  3. Install guide fork collar and 2-4 shift fork spring to the 2-4 shift fork, and then secure it with the new retaining ring.

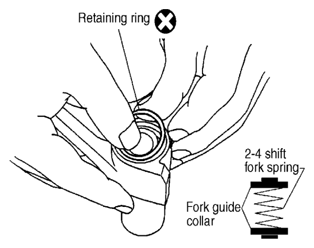

    Fig 1: Installing Guide Fork Collar And 2-4 Shift Fork Spring
    G06444886Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION:
    • Do not reuse retaining ring.
    • Be careful with orientation.
  4. Install the 2-4shift bracket to the L-H shift rod.

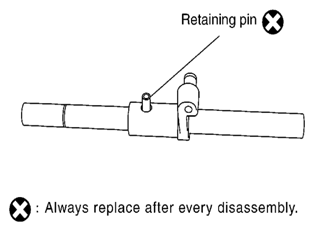

    Fig 2: Identifying Retaining Pin
    G06444887Courtesy of SUZUKI OF AMERICA CORP.
  5. Install the new retaining pin evenly to the L-H shift rod.
    CAUTION: Do not reuse retaining pin.
  6. Install the drum cam to the control shift rod, and then secure it with the new retaining pin.

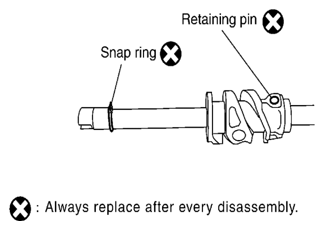

    Fig 3: Identifying Retaining Pin And Snap Ring
    G06444888Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Do not reuse retaining pin.
  7. Install the new snap ring to the control shift rod.
    CAUTION: Do not reuse snap ring.
