Planetary Carrier: Disassembly and Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

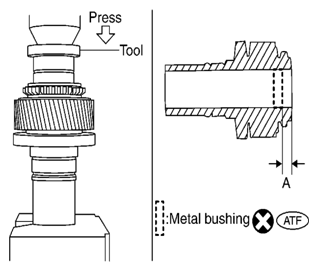

Apply ATF to the new metal bushing, then install the new metal bushing until it becomes "Dimension A" using Tool.

Fig 1: Installing Metal Bushing
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: ST35300000 (-)

Dimension A: 7.7 - 8.3mm (0.303 - 0.327in)

CAUTION: Do not reuse metal bushing.
Apply ATF to the new needle bearing, then install the new needle bearing until it becomes "Dimension B" using Tool.

Fig 2: Installing Needle Bearing
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: ST33220000 (-)

Dimension B: 62.5 - 63.1mm (2.461 - 2.484in)

CAUTION: Do not reuse needle bearing.
Install the carrier bearing to the sun gear using Tools.

Fig 3: Installing Carrier Bearing
Courtesy of SUZUKI OF AMERICA CORP.

Tool number A: ST30720000 (J-25405)

B: ST27863000 (-)

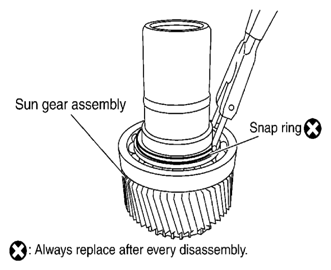

Install the new snap ring to the sun gear assembly using suitable tool.

Fig 4: Installing Snap Ring To Sun Gear Assembly
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Do not reuse snap ring.
Install the sun gear assembly to the planetary carrier assembly.

Fig 5: Installing Sun Gear Assembly To Planetary Carrier Assembly
Courtesy of SUZUKI OF AMERICA CORP.

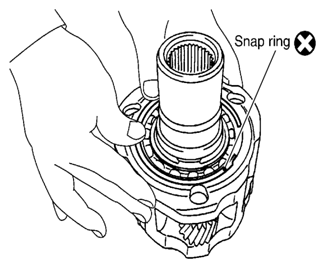

Install the new snap ring to the planetary carrier assembly.
CAUTION: Do not reuse snap ring.
