Section 3 (Transfer (4WD) System)
>>
General Description
>>
Cross-Sectional View
Cross-Sectional View
WARNING:
This page is about a different variant/trim than selected.

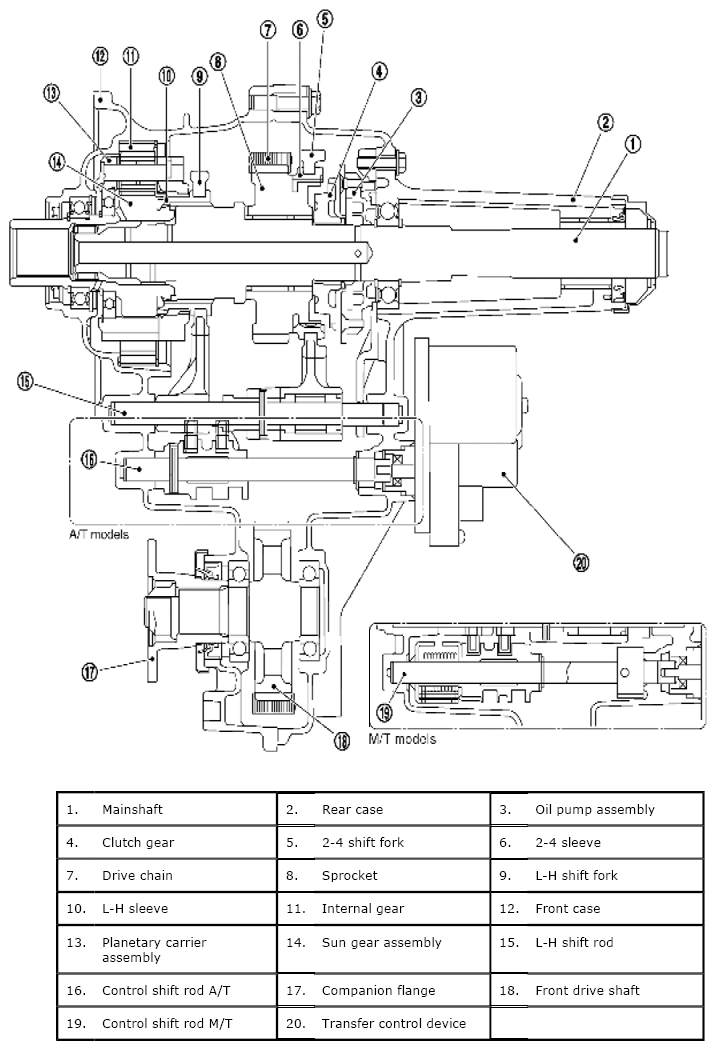

Fig 1: Cross-Sectional View Of 4WD System
Courtesy of SUZUKI OF AMERICA CORP.
