4WD Shift Switch And Indicator Lamp: Notes

WARNING: This page is about a different variant/trim than selected.

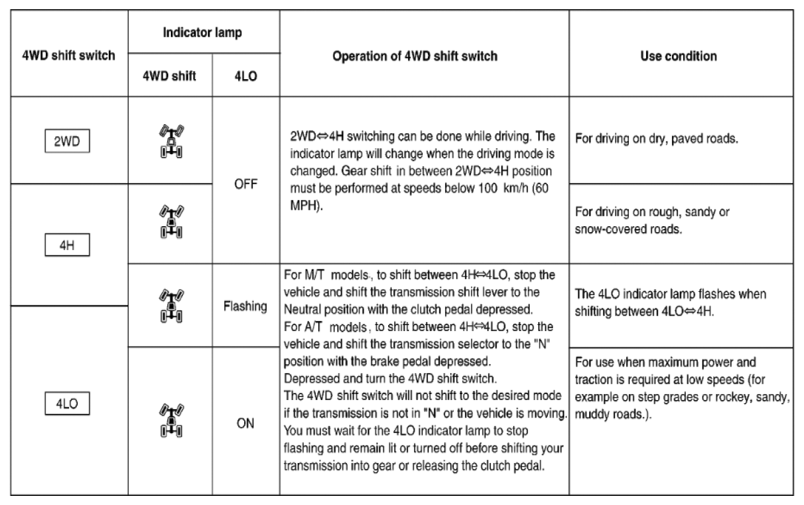

Fig 1: 4WD Shift Switch And Indicator Lamp Specification Chart
G06444730Courtesy of SUZUKI OF AMERICA CORP.
