Diagnosis Procedure
WARNING: This page is about a different variant/trim than selected.
Regarding Wiring Diagram information, refer to [TRANSFER CONTROL UNIT: WIRING DIAGRAM ].
DIAGNOSIS PROCEDURE
| Step | Action | YES | NO |
|---|---|---|---|

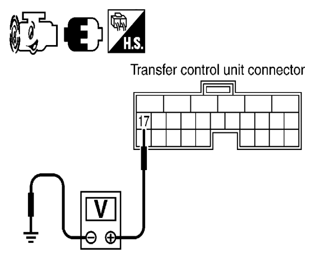

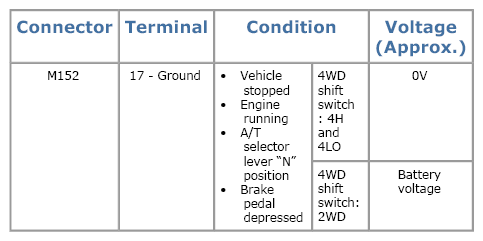

| 1 | CHECK WAIT DETECTION SWITCH SIGNAL
Are the inspection results normal? |
GO TO 5. | GO TO 2. |

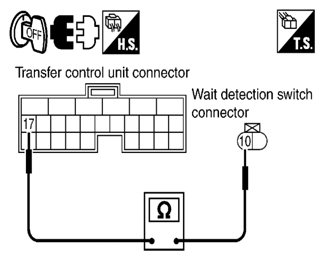

| 2 | CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND WAIT DETECTION SWITCH
Continuity should exist. Also check harness for short to ground and short to power. Is there continuity? |
GO TO 3. | Repair or replace damaged parts. |

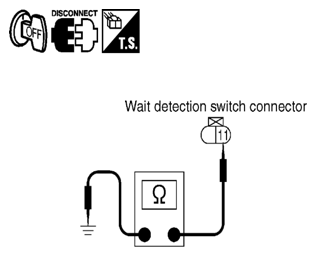

| 3 | CHECK GROUND CIRCUIT
Continuity should exist. Also check harness for short to power. Is there continuity? |
GO TO 4. | Repair open circuit or short to power in harness or connectors. |

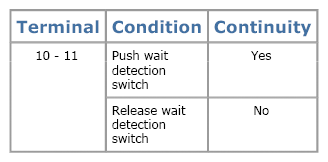

| 4 | CHECK WAIT DETECTION SWITCH
Are the inspection results normal? |
GO TO 5. | Replace wait detection switch. |
| 5 | CHECK TRANSFER CONTROL UNIT Check transfer control unit input/output signal. Refer to [TRANSFER CONTROL UNIT: REFERENCE VALUE ]. Are the inspection results normal? |
GO TO 6. | Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts. |
| 6 | CHECK DTC Drive the vehicle and then perform "DTC check". Is DTC P1814 displayed? |
Replace transfer control unit. Refer to [TRANSFER CONTROL UNIT: REMOVAL AND INSTALLATION ]. | Inspection End. |
