Component Inspection
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch "OFF". (Stay for at least 5 seconds.)
- Remove transfer shut off relay 1 and transfer shut off relay 2. Refer to [P1801, P1811 POWER SUPPLY CIRCUIT FOR TRANSFER CONTROL UNIT ].

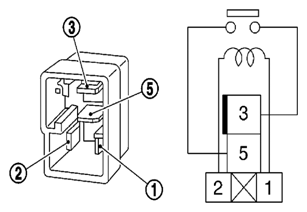

- Apply 12V direct current between transfer shut off relay terminals 1 and 2.
- Check continuity between relay terminals 3 and 5.CONTINUITY CHART
Condition Continuity 12V direct current supply between terminals 1 and 2 Yes OFF No - If inspection results are not normal, replace the transfer shut off relay 1 or 2.
