Cellular and Navigation Antenna Assembly Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

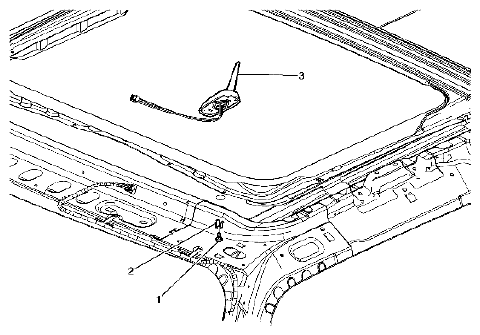

Fig 1: Identifying Mobile Telephone & Vehicle Location Antenna Assembly, Expansion Sleeve & Bolt

Courtesy of SUZUKI OF AMERICA CORP.

CELLULAR AND NAVIGATION ANTENNA ASSEMBLY REPLACEMENT REFERENCE

Callout	Component Name
Preliminary Procedure Lower the front of the headliner. Refer to HEADLINING TRIM PANEL REPLACEMENT .
1	Mobile Telephone and Vehicle Location Antenna Assembly Bolt CAUTION: Refer to FASTENER NOTICE . Tightening torque 5 N.m (44 lb in)
2	Mobile Telephone and Vehicle Location Antenna Expansion Sleeve
3	Mobile Telephone and Vehicle Location Antenna Assembly Tip: Disconnect electrical connections.
