Headlining Trim Panel Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

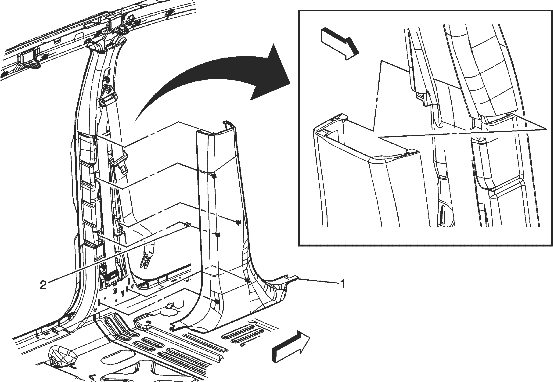

Fig 1: Identifying Headliner Trim Panel Assembly & Retainer

Courtesy of SUZUKI OF AMERICA CORP.

HEADLINER TRIM PANEL ASSEMBLY COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove overhead console. Refer to ROOF CONSOLE REPLACEMENT Remove coat hooks. Refer to COAT HOOK REPLACEMENT . Remove sunshades. Refer to SUNSHADE REPLACEMENT . Remove dome lamp. Refer to DOME LAMP REPLACEMENT (WITHOUT DVD) . Remove windshield garnish molding. Refer to WINDSHIELD UPPER GARNISH MOLDING REPLACEMENT . Remove center pillar upper molding. Refer to CENTER PILLAR UPPER GARNISH MOLDING REPLACEMENT . Remove upper body lock pillar molding. Refer to LOCK PILLAR UPPER GARNISH MOLDING REPLACEMENT (LEFT SIDE) and LOCK PILLAR UPPER GARNISH MOLDING REPLACEMENT (RIGHT SIDE) . Remove rear corner molding. Refer to BODY REAR CORNER GARNISH MOLDING REPLACEMENT . Place rear seats in stowed position. Move front seats forward and remove headrests.
1	Headliner Trim Panel Push Pin
2	Headliner Trim Panel Retainer (Qty: 13)
3	Headliner Trim Panel Assembly Procedures Remove door weather seal at top of doors only to allow headliner to be lowered. Disconnect electrical connectors.
