Multifunction Turn Signal Switch Housing Replacement

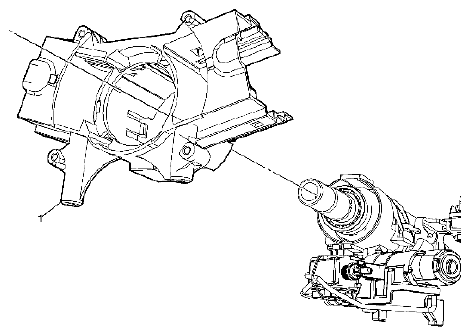

Fig 1: Identifying Multifunction Turn Signal Switch Housing

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME

Callout	Component Name
Preliminary Procedures  Remove the inflatable restraint steering wheel module coil. Refer to INFLATABLE RESTRAINT STEERING WHEEL MODULE COIL REPLACEMENT . Remove the turn signal multifunction switch. Refer to TURN SIGNAL MULTIFUNCTION SWITCH REPLACEMENT . Remove the wipers/washer switch. Refer to WIPERS/WASHER SWITCH REPLACEMENT .
1	Multifunction Turn Signal Switch Housing Procedure  Release the 2 retaining tabs to remove the housing from the steering column.
