Turn Signal Multifunction Switch Replacement

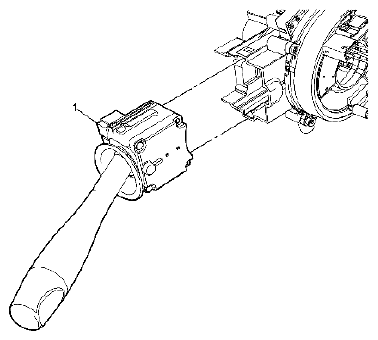

Fig 1: Identifying Turning Signal Multifunction Switch

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME

Callout	Component Name
Preliminary Procedures  Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
1	Turn Signal Multifunction Switch Procedure  Disconnect any electrical connectors as needed. Depress the locking tabs to remove the turn signal multifunction switch.
