Electronic Shift Control System Components Location

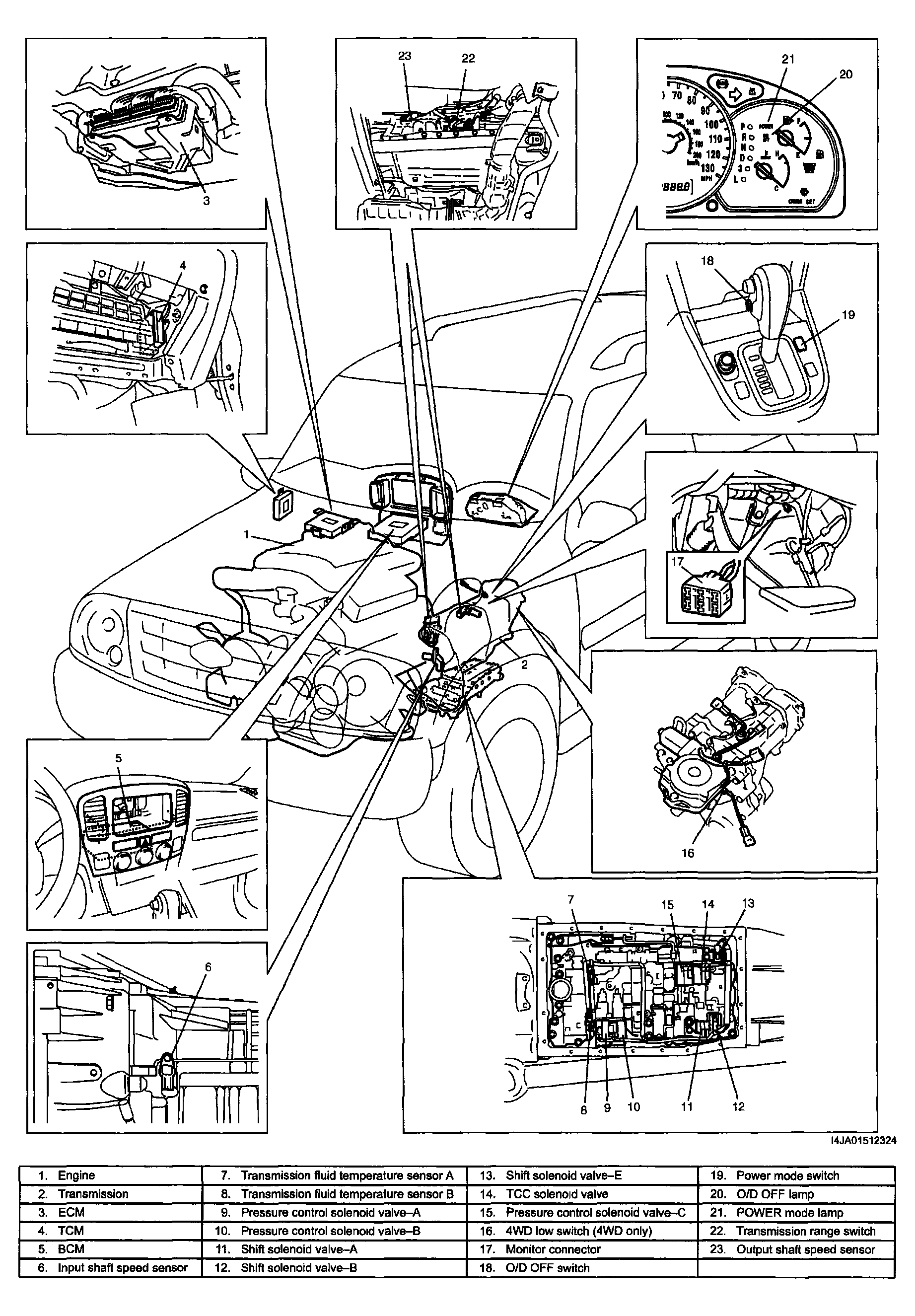

Fig 1: Identifying Electronic Shift Control System Components Location

G04099788

Courtesy of SUZUKI OF AMERICA CORP.
