Electronic Shift Control System Description: Notes

The gear ratio change in "D" or "2" range and torque converter clutch operation are controlled by Powertrain (Engine) Control Module.

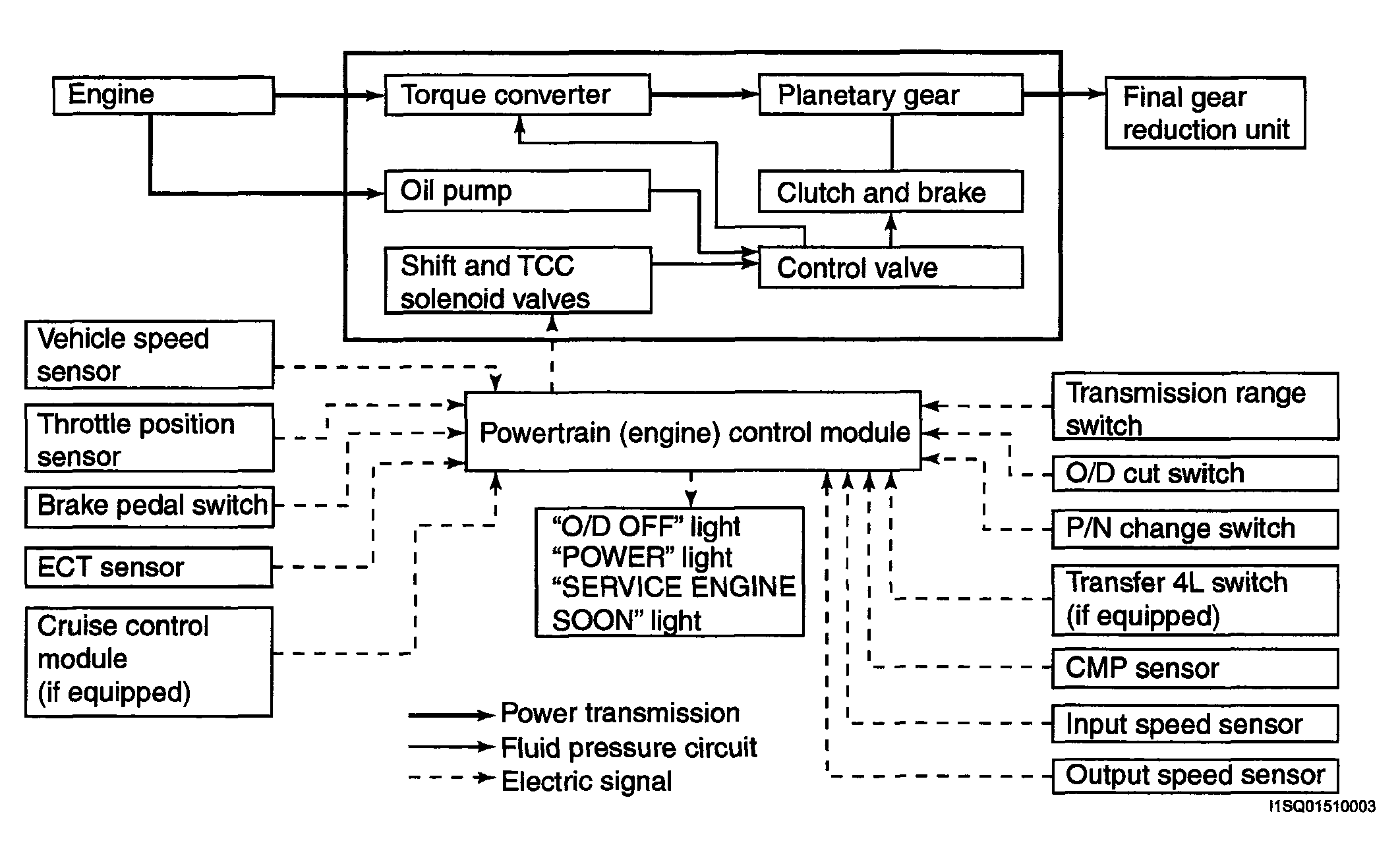

Fig 1: Electronic Shift Control System Description Chart
G04099490Courtesy of SUZUKI OF AMERICA CORP.
