Power Assisted Steering System
>>
Specifications
>>
Tightening Torque Specifications
Tightening Torque Specifications

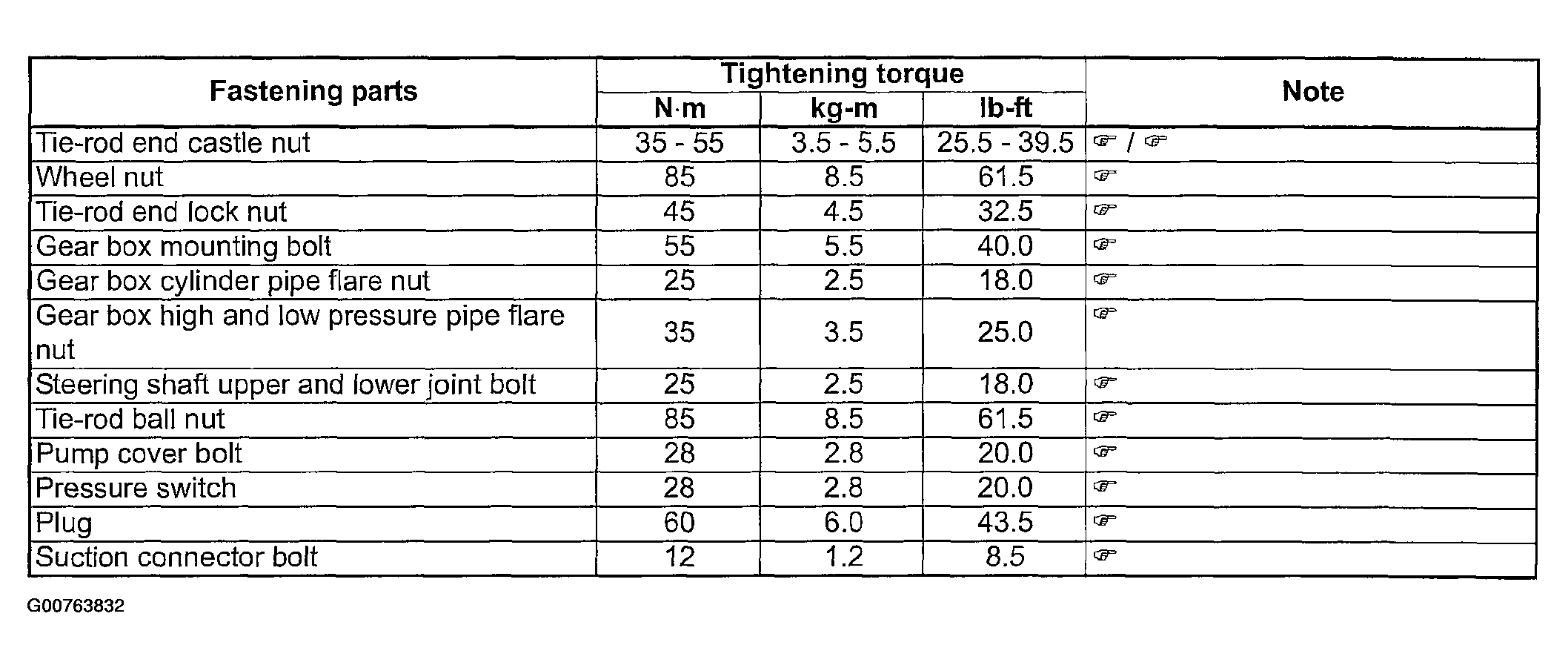

Fig 1: Tightening Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
NOTE:
The specified tightening torque is described in the following.
P/S Gear Box Components
P/S Pump Components
