Home >> Suzuki >> 2004 >> Aerio S, Standard >> Repair and Diagnosis >> Steering >> Power Steering >> Power Assisted Steering System >> Repair Instructions >> P/S Pump Components

P/S Pump Components

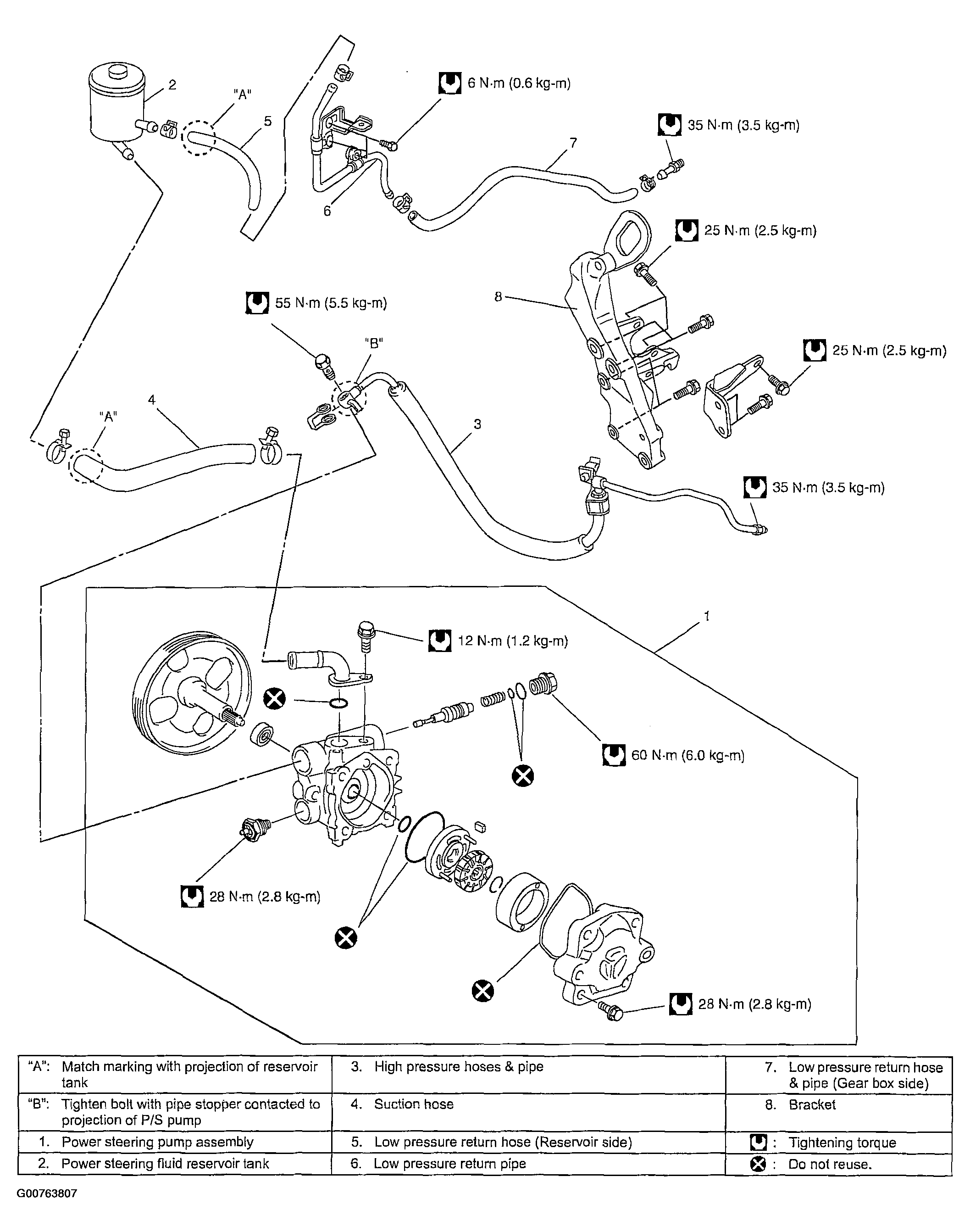

Fig 1: Identifying P/S Pump Components

G00763807

Courtesy of SUZUKI OF AMERICA CORP.
