Ignition System: Distributor: Overhaul

See Fig 1 .

NOTE: Ensure pick-up coil magnet is free of any metal particles.

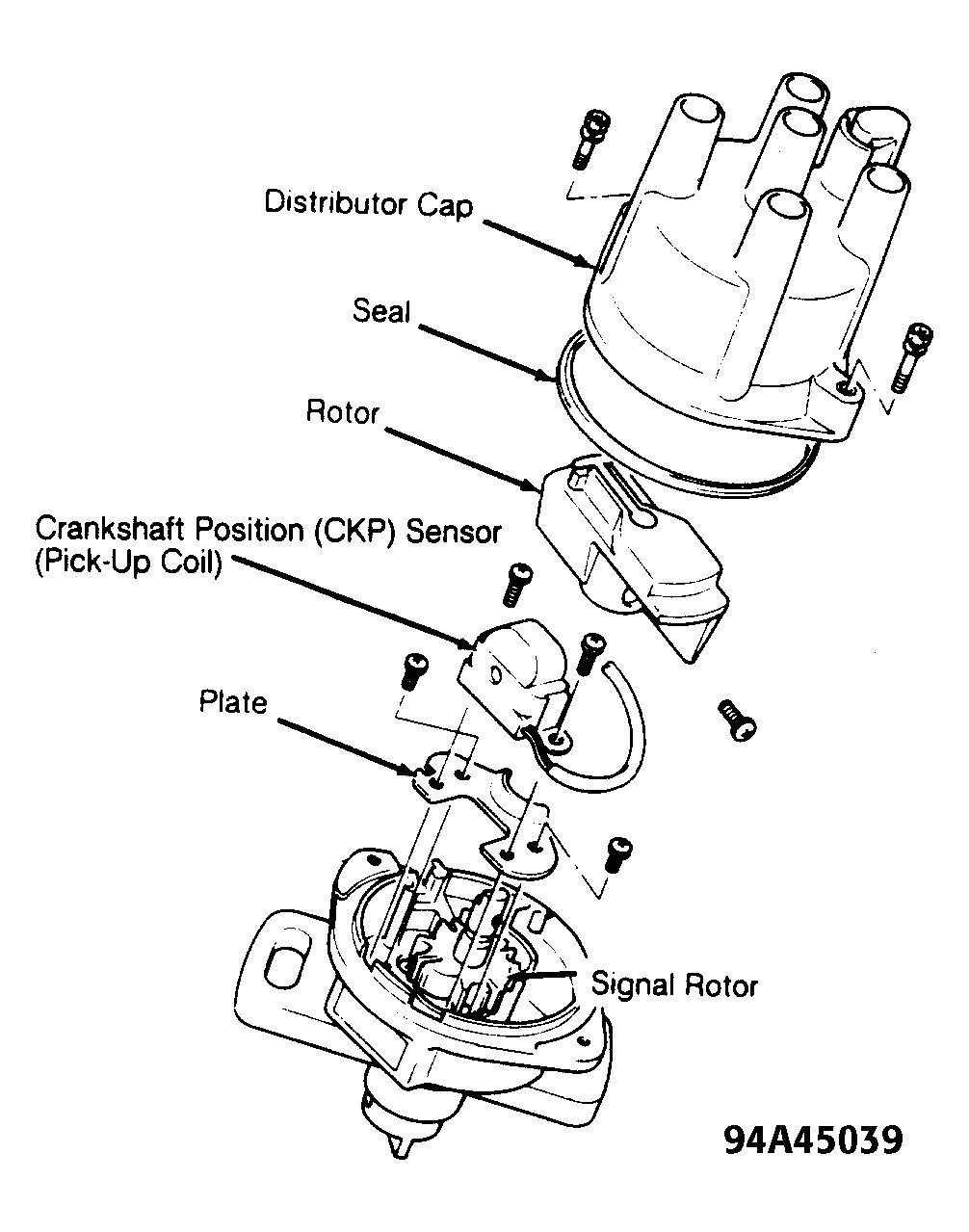

Fig 1: Exploded View Of Distributor

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Distributor drive coupling and camshaft slot are offset. Distributor cannot be installed backward.
