Engine Controls - Remove/Install/Overhaul - 1.6L MFI
>>
Ignition System
>>
Distributor
>>
Overhaul
Ignition System: Distributor: Overhaul
See
Fig 1
.
NOTE:
Ensure pick-up coil magnet is free of any metal particles.

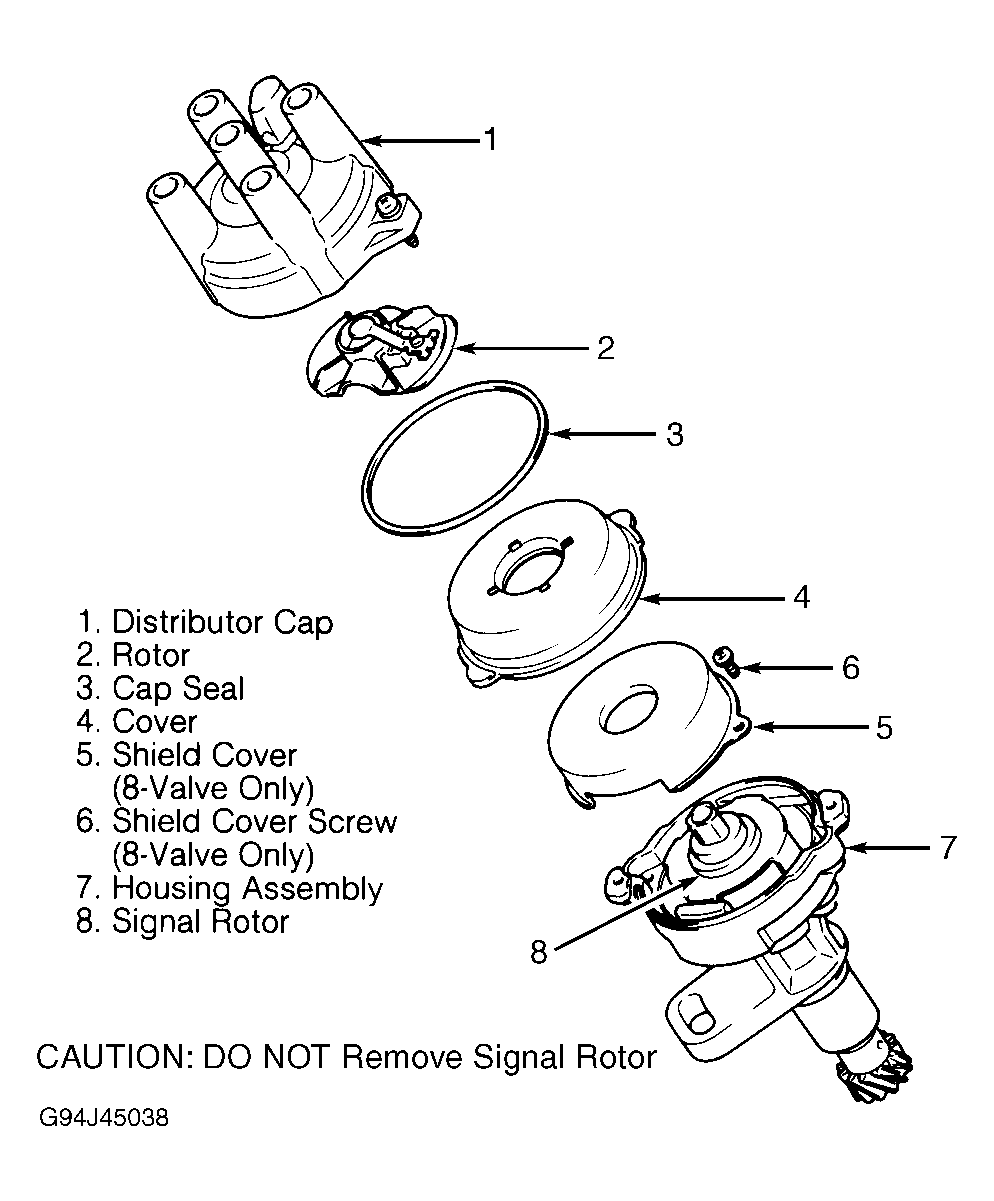

Fig 1: Exploded View Of Distributor (Typical)
Courtesy of SUZUKI OF AMERICA CORP.
