Distributor Overhaul

See Fig 1 through Fig 4 .

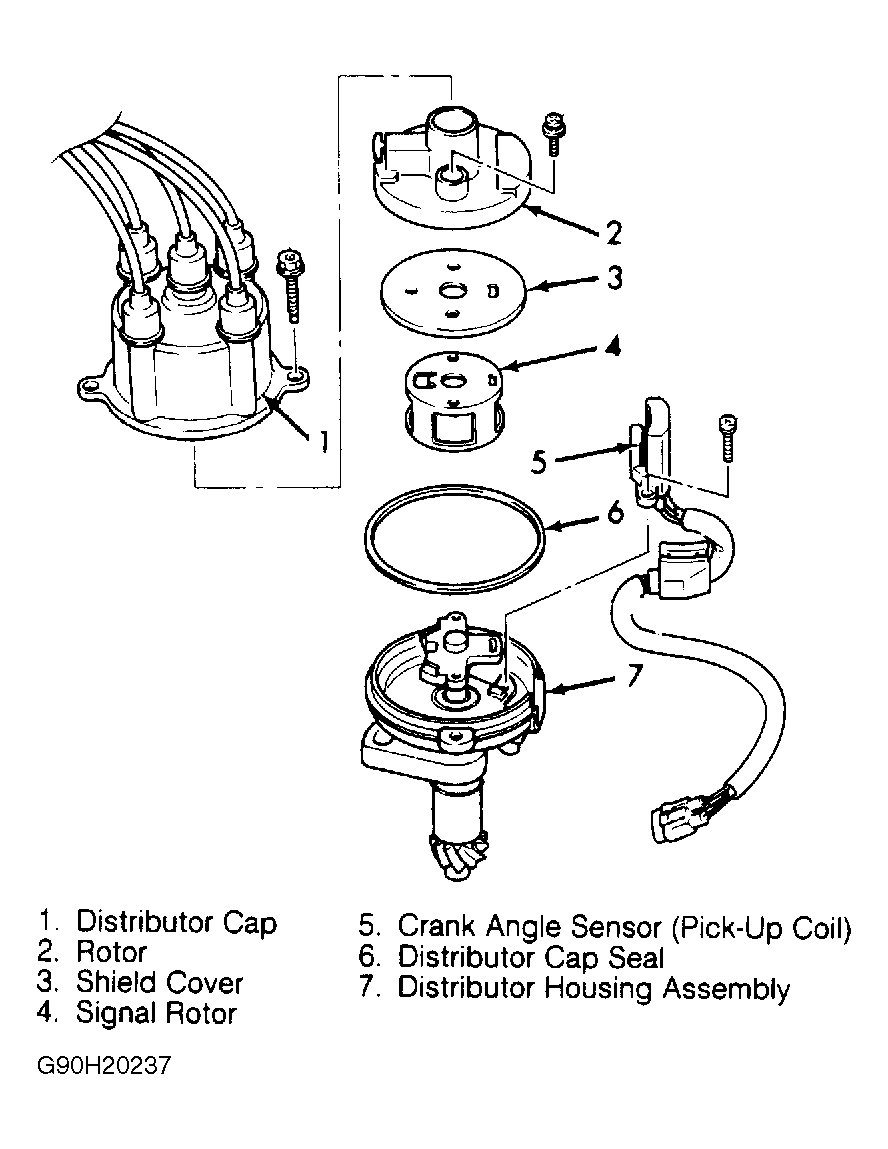

Fig 1: Exploded View of Distributor (Samurai)
G90H20237Courtesy of SUZUKI OF AMERICA CORP.

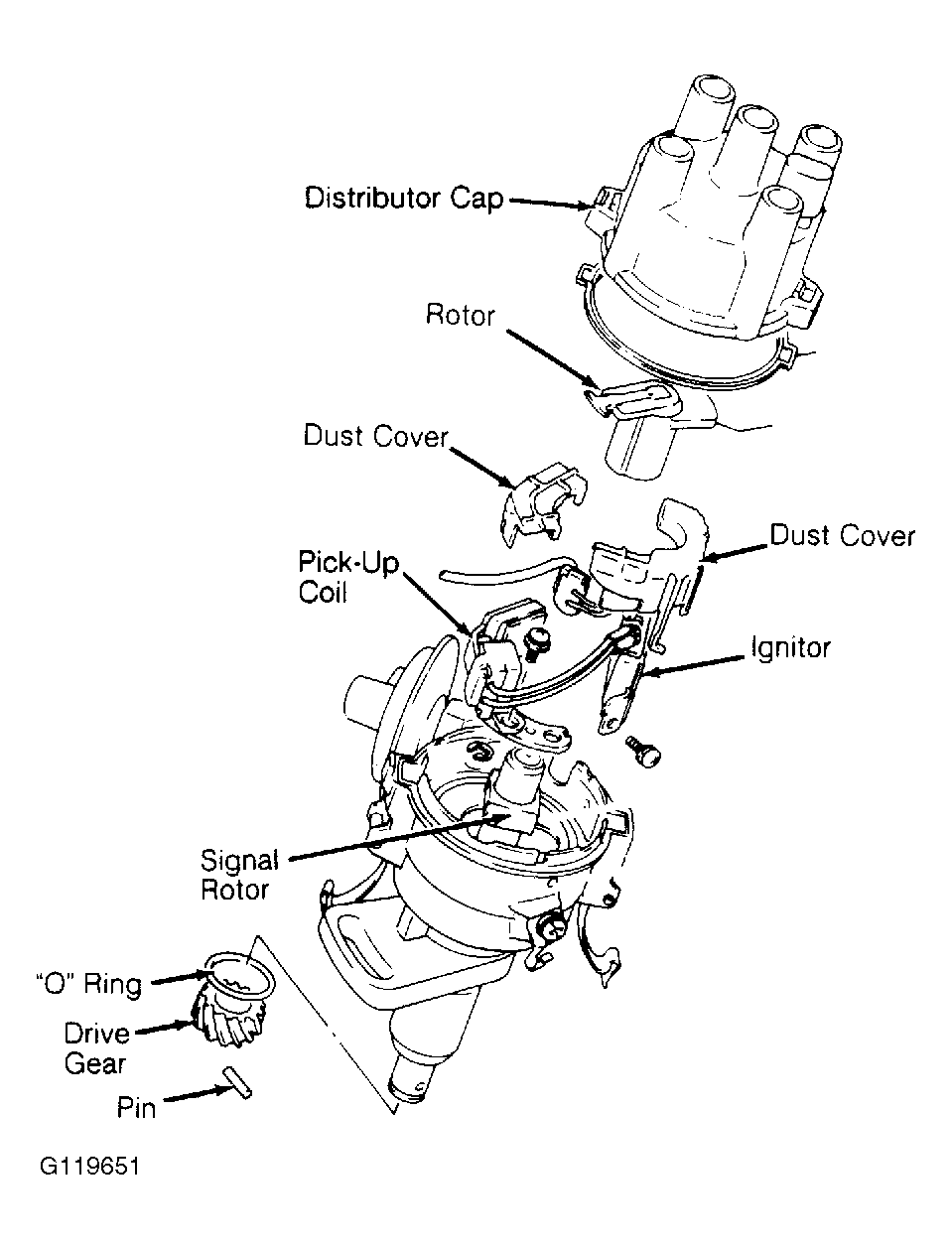

Fig 2: Exploded View of Distributor (Sidekick)
G119651Courtesy of SUZUKI OF AMERICA CORP.

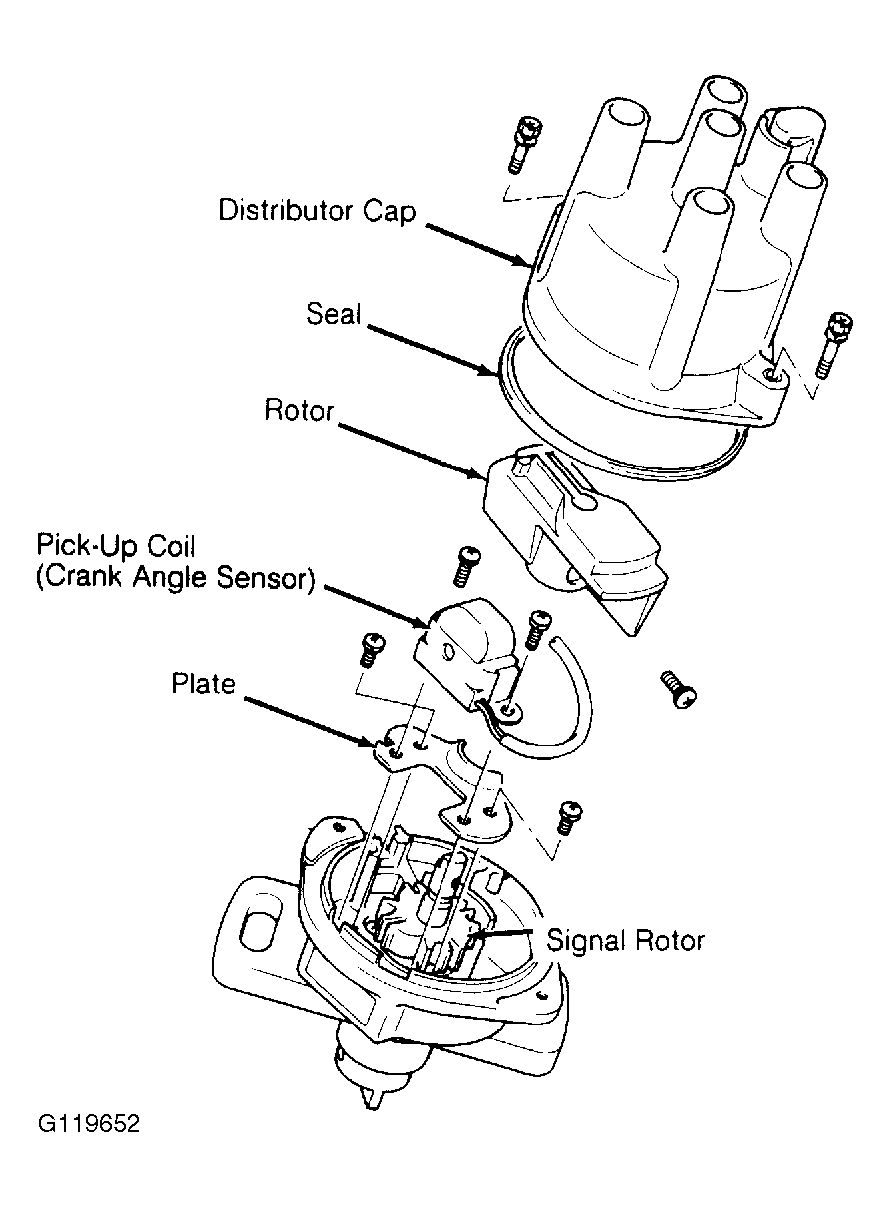

Fig 3: Exploded View of Distributor (Swift DOHC)
G119652Courtesy of SUZUKI OF AMERICA CORP.

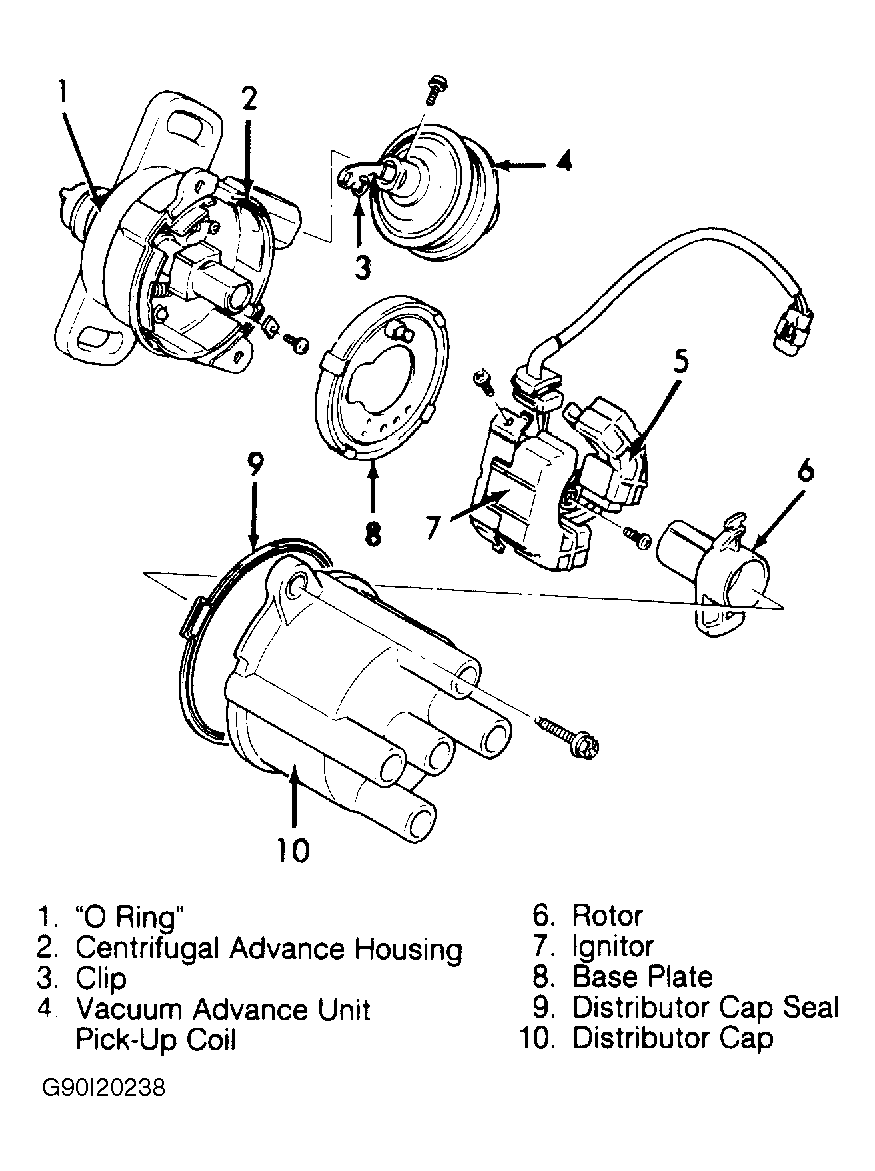

Fig 4: Exploded View of Distributor (Swift SOHC)
G90I20238Courtesy of SUZUKI OF AMERICA CORP.
