Engine Starting System & Charging System: Generator: Removal

NOTE: Components: Ref. to STARTING/CHARGING SYSTEMS (H4DO)>GENERAL DESCRIPTION>COMPONENT>GENERATOR .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .
  3. Remove the V-belts. Ref. to MECHANICAL (H4DO)>V-BELT>REMOVAL .
  4. Remove the generator.
    1. Disconnect the terminal B (A).
    2. Disconnect the connector (B).
      G16761838Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the generator.

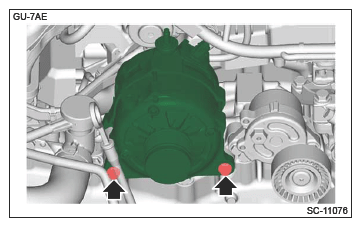

      G16761839Courtesy of SUBARU OF AMERICA, INC.
