Components With Torque Specifications: Generator
- 2.0 L model

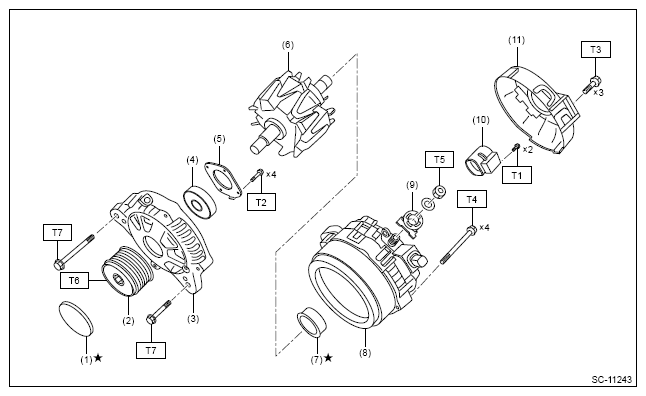

(1) Dust cover (2) Pulley (3) Front cover (4) Ball bearing (5) Bearing retainer (6) Rotor ASSY (7) Bearing cover (8) Stator coil ASSY (9) Bushing (10) Brush ASSY (11) Rear cover Tightening torque: N.m (kgf-m, ft-lb)
T1: 1.76 (0.2, 1.3)
T2: 2.26 (0.2, 1.7)
T3: 4.55 (0.5, 3.4)
T4: 5.6 (0.6, 4.1)
T5: 15.5 (1.6, 11.4)
T6: 80 (8.2, 59)
T7 : Ref. to STARTING/CHARGING SYSTEMS (H4DO)>GENERATOR>INSTALLATION .
- 2.5 L model

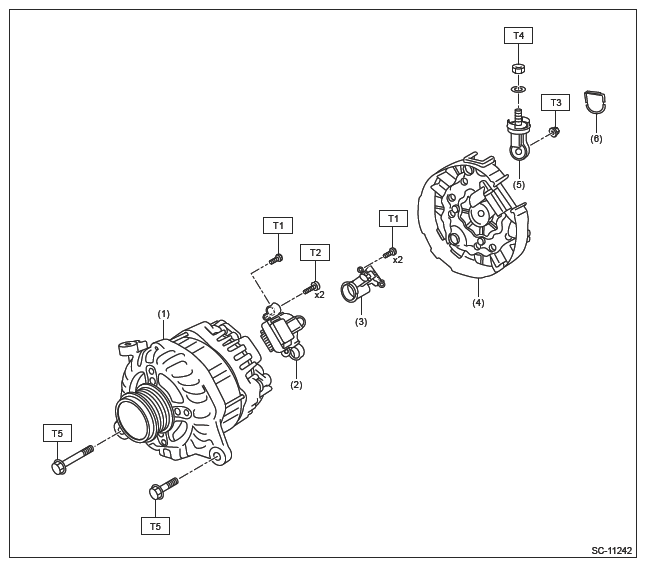

(1) Rotor & stator ASSY (2) IC regulator (3) Brush holder (4) Rear cover (5) Terminal B (6) Cover Tightening torque: N.m (kgf-m, ft-lb)
T1: 2 (0.2, 1.5)
T2: 3.9 (0.4, 2.9)
T3: 8.9 (0.9, 6.6)
T4: 15.5 (1.6, 11.4)
T5 : Ref. to STARTING/CHARGING SYSTEMS (H4DO)>GENERATOR>INSTALLATION .
