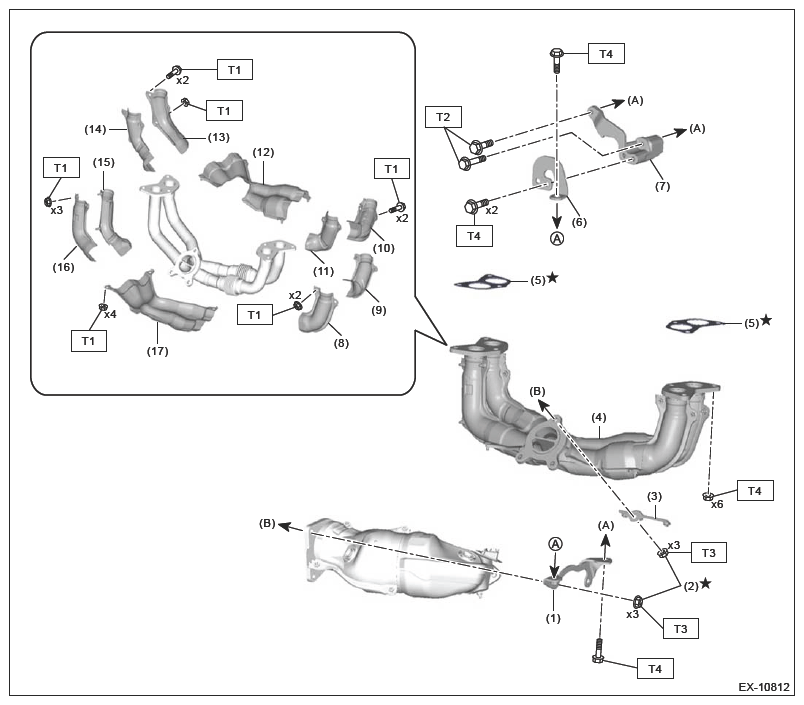

Front Exhaust Pipe
| (A) | To engine unit |
| (B) | To turbocharger ASSY |
| (1) | Exhaust stay |
| (2) | Self-locking nut |
| (3) | Exhaust stay |
| (4) | Front exhaust pipe |
| (5) | Gasket |
| (6) | Turbocharger stay |
| (7) | Turbocharger stay |
| (8) | Exhaust cover |
| (9) | Exhaust cover |
| (10) | Exhaust cover |
| (11) | Exhaust cover |
| (12) | Exhaust cover |
| (13) | Exhaust cover |
| (14) | Exhaust cover |
| (15) | Exhaust cover |
| (16) | Exhaust cover |
| (17) | Exhaust cover |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 19 (1.9, 14.0)
T3: 42.5 (4.3, 31.3)
T4: Ref. to EXHAUST (H4DOTC)>FRONT EXHAUST PIPE>INSTALLATION .
