Front Exhaust Pipe: Assembly

1. Install each exhaust cover to the front exhaust pipe. Ref. to EXHAUST (H4DOTC)>GENERAL DESCRIPTION>COMPONENT>FRONT EXHAUST PIPE .

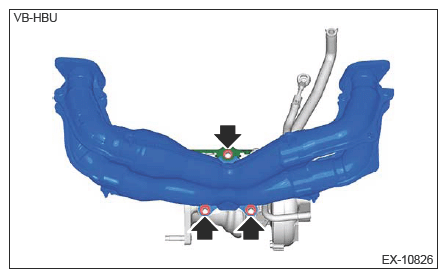

2. Using a new gasket, install the front exhaust pipe and the exhaust stay.
   CAUTION: Be sure to use a new self-locking nut.

   Tightening torque:

   42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

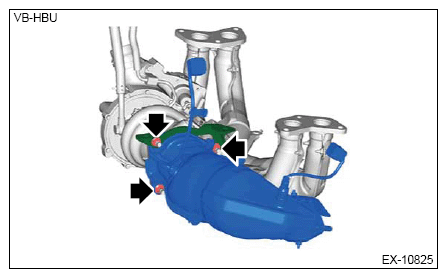

3. Using a new gasket, install the center exhaust pipe (front) and the exhaust stay.
   CAUTION: Be sure to use a new self-locking nut.

   Tightening torque:

   42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

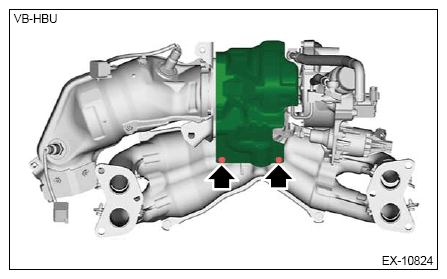

4. Install the exhaust cover.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
