Rear Door Glass: Installation

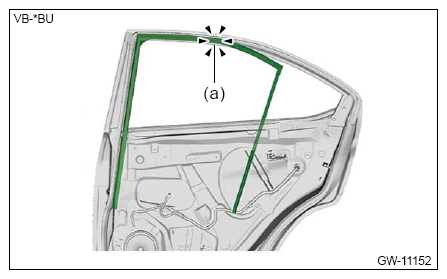

- Install the running channel rear door up to the roof center position (a) of the panel COMPL door rear.CAUTION: Check that the running channel is securely fixed to the door panel COMPL.
- Install the glass assembly rear door.CAUTION: Avoid impact and damage to the door glass assembly.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Install the glass rear door partition.
- Install the sash assembly rear door partition.

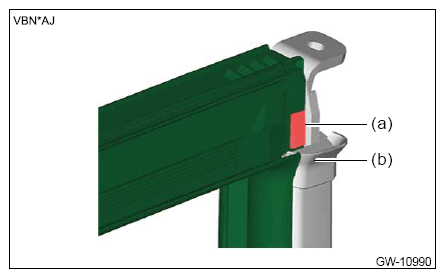

- Install the running channel rear door to the sash assembly rear door partition.CAUTION: Align the rib (a) of the running channel with the sash assembly upper end (b).
- Install the sash assembly rear door partition.
Tightening torque:
Refer to "COMPONENT" of "General Description" for the tightening torque.
Ref. to GLASS/WINDOWS/MIRRORS>GENERAL DESCRIPTION>COMPONENT>REAR DOOR GLASS .
- Install the running channel rear door to the sash assembly rear door partition.
- Install the rest of the running channel rear door.NOTE: After installation, check that there is no warpage, gap or scratch.
- Install the sealing cover door rear. Ref. to EXTERIOR BODY PANELS>SEALING COVER>INSTALLATION>REAR SEALING COVER .
- Install the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>INSTALLATION>REAR DOOR .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Perform the initial setting of the power window system. Ref. to GLASS/WINDOWS/MIRRORS>POWER WINDOW SYSTEM>OPERATION .
