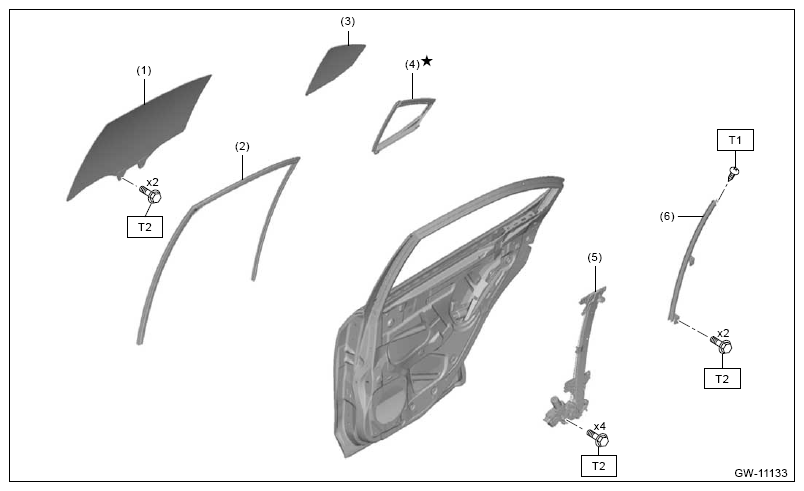

Rear Door Glass
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Glass ASSY rear door |
| (2) |
Running channel rear door |
| (3) |
Glass rear door partition |
| (4) |
Weather strip rear door partition |
| (5) |
Regulator & motor ASSY rear |
| (6) |
Sash ASSY rear door partition |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 2.2 (0.2, 1.6)
T2: 7.5 (0.8, 5.5)
