Torque Converter: Removal

  1. Remove the transmission body. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the ST.
    G16523758Courtesy of SUBARU OF AMERICA, INC.

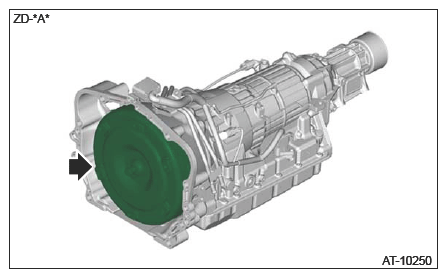

  3. Pull out the torque converter horizontally.
    CAUTION: Be careful not to scratch the inside of engaging parts.
    NOTE: Prepare the container for draining of engine oil.
G16525809Courtesy of SUBARU OF AMERICA, INC.
