Oil Pump: Removal

  1. Remove the converter case. Ref. to AUTOMATIC TRANSMISSION>CONVERTER CASE>REMOVAL .
  2. Remove the oil pump.
    G16525821Courtesy of SUBARU OF AMERICA, INC.

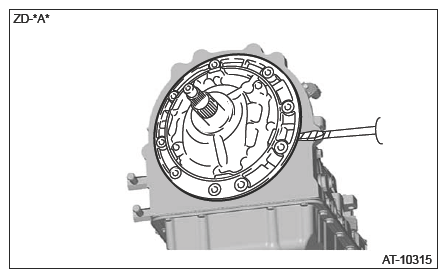

  3. Using a flat tip screwdriver wrapped with protection tape, expand the clearance and remove the oil pump.
    CAUTION: Be careful not to damage the oil pump and transmission case.
    G16525822Courtesy of SUBARU OF AMERICA, INC.

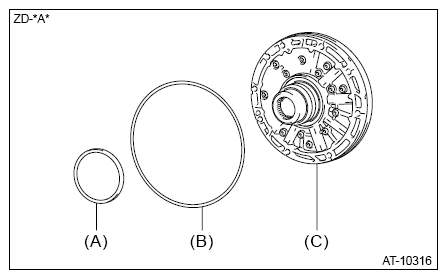

  4. Remove the No. 1 thrust bearing race and the O-ring.
    G16525823Courtesy of SUBARU OF AMERICA, INC.
    (A) No. 1 thrust bearing race
    (B) O-ring
    (C) Oil pump
  5. Remove the seal rings.
    G16525824Courtesy of SUBARU OF AMERICA, INC.
    (A) Seal ring
    (B) Oil pump
  6. Using the ST, remove the oil seal.

    Preparation tool:

    ST: PULLER ASSY (398527700)

G16525825Courtesy of SUBARU OF AMERICA, INC.
