Home >> Subaru >> 2022 >> BRZ Limited, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission System >> Converter Case >> Removal

Converter Case: Removal

  1. Remove the torque converter. Ref. to AUTOMATIC TRANSMISSION>TORQUE CONVERTER>REMOVAL .

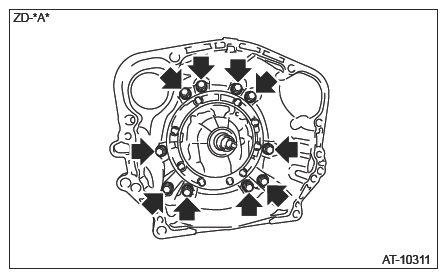

  2. Remove the converter case.
    G16525817Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the liquid gasket from the transmission case and bolts.
