Radiator Fan And Fan Motor Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • The engine coolant is pressurized when it is hot. Wait until engine coolant cools down before proceeding the work.
  • If the engine coolant is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .
  3. Remove the reservoir tank. Ref. to COOLING (H4DOTC)>RESERVOIR TANK>REMOVAL .
  4. Drain engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .

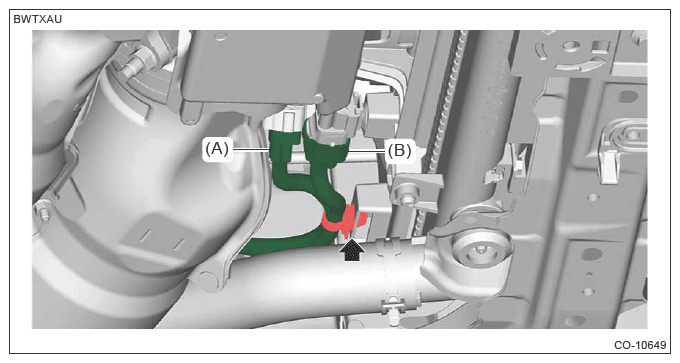

  5. Disconnect the connector (A) and connector (B) from the radiator fan harness.
  6. Remove the clip which holds bulkhead wiring harness to the radiator fan shroud.
    G13949320Courtesy of SUBARU OF AMERICA, INC.

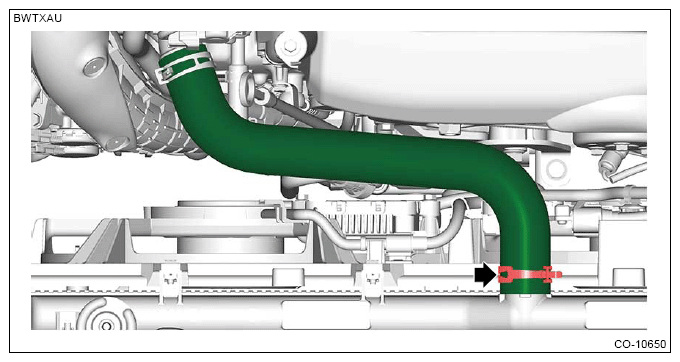

  7. Disconnect the radiator inlet hose.
    G13949321Courtesy of SUBARU OF AMERICA, INC.

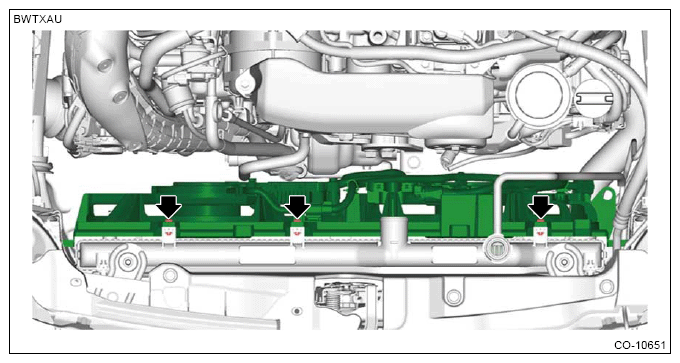

  8. Remove the radiator fan and fan motor assembly.
    G13949322Courtesy of SUBARU OF AMERICA, INC.
