Reservoir Tank: Removal

WARNING: This page is about a different variant/trim than selected.

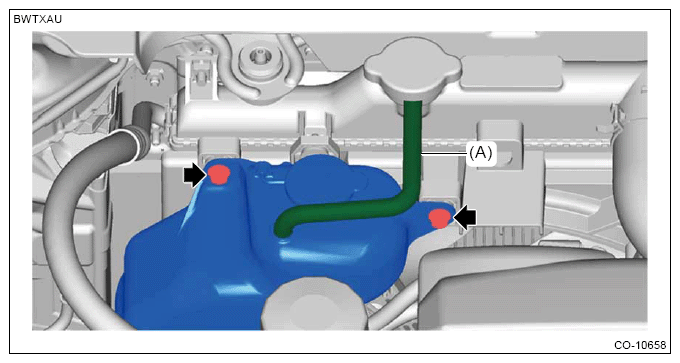

  1. Pull out the over flow hose (A) from the reservoir tank.
  2. Remove the reservoir tank.
G13949338Courtesy of SUBARU OF AMERICA, INC.
