Rear Hub Unit Bearing: Installation

Install the rear brake back plate and rear hub unit bearing.
CAUTION:
- Always use a new bolt.
- Be careful not to damage the spline portion of the rear drive shaft.
- Be careful not to damage the rear hub unit bearing.
- Do not get closer the tool which charged magnetism to the rear hub unit bearing.
Tightening torque:

85 N.m (8.7 kgf-m, 62.7 ft-lb)
Install the electronic parking brake harness bracket.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the rear disc rotor. Ref. to BRAKE>REAR DISC ROTOR>INSTALLATION .
While depressing the brake pedal, install the axle nut.
CAUTION: Be sure to use a new axle nut.

Tightening torque:

240 N.m (24.5 kgf-m, 177.0 ft-lb)

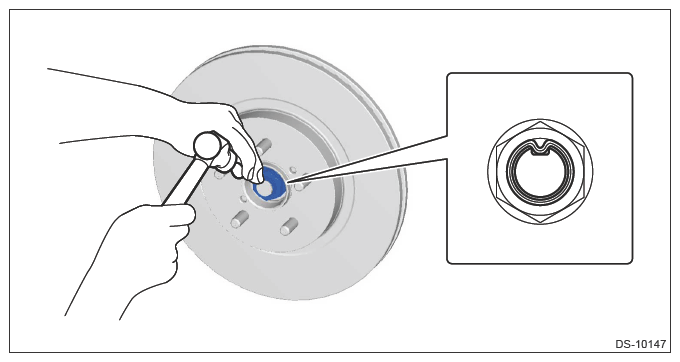

Crimp the axle nut.

Courtesy of SUBARU OF AMERICA, INC.
Install the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Using the Subaru Select Monitor, exit the brake maintenance mode. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
After the operation is completed, apply and release the parking brake five times and ensure that the brake operates normally.
