Rear Disc Rotor: Installation

NOTE:
  • Before installation, remove mud and foreign matter from the disc brake assembly rear.
  • Check that the ground terminal is disconnected from the battery sensor.
  1. Check the brake disc rear. Ref. to BRAKE>REAR DISC ROTOR>INSPECTION .
  2. Install the brake disc rear.

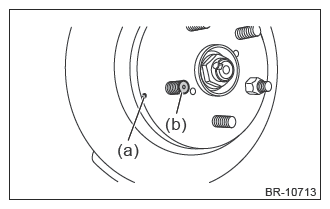

    NOTE: When installing the brake disc rear, match the alignment mark (a) of the brake disc rear and the alignment mark (b) of the hub bolt.
    G13950088Courtesy of SUBARU OF AMERICA, INC.
  3. Install the disc brake assembly rear.
    CAUTION:
    • Securely install the parking brake harness connector.
    • Do not reuse the mounting bolt. Always replace with a new bolt.

    Tightening torque:

    Mounting bolt: 73 N.m (7.4 kgf-m, 53.8 ft-lb)

    Brake hose bracket: 33 N.m (3.4 kgf-m, 24.3 ft-lb)

  4. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  5. Using the Subaru Select Monitor, exit the brake maintenance mode. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
  6. After the operation is completed, apply and release the parking brake five times and ensure that the brake operates normally.
  7. Install the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>INSTALLATION .
