Front Hub Unit Bearing: Removal

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

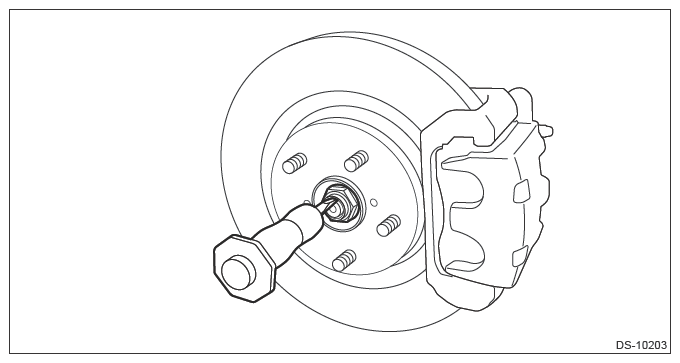

  2. Lift the crimped section of axle nut.
    G13949975Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the axle nut while depressing the brake pedal.
  4. Remove the front disc rotor. Ref. to BRAKE>FRONT DISC ROTOR>REMOVAL .

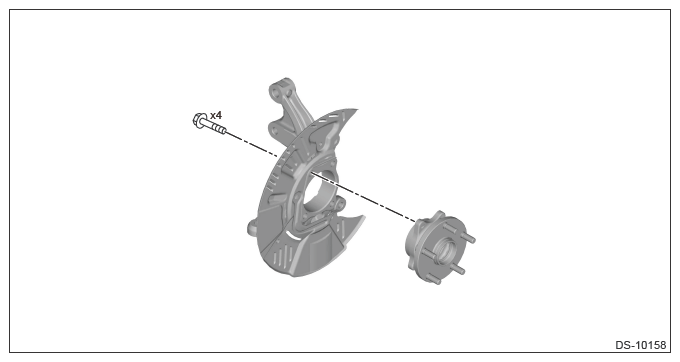

  5. Remove the front hub unit bearing.
    CAUTION:
    • Be careful not to damage the front hub unit bearing.
    • Do not get closer the tool which charged magnetism to the front hub unit bearing.
    G13949976Courtesy of SUBARU OF AMERICA, INC.
