Front Disc Rotor: Removal

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the disc brake assembly front.

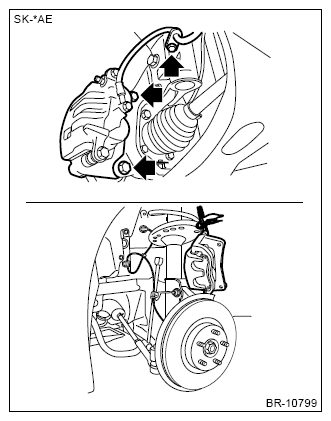

    1. Remove the brake hose bracket and mounting bolt, and remove the disc brake assembly front.
    2. Prepare wiring harnesses etc. to be discarded, and suspend the disc brake assembly front from the strut assembly.
    G13225371Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the brake disc front.
    NOTE: When the brake disc front is difficult to be removed, screw in 8 mm (0.31 in) bolt to the threaded part (a), and remove the brake disc front.
G13199732Courtesy of SUBARU OF AMERICA, INC.
