Rear Wiper Motor: Installation

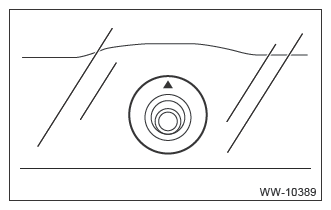

- Check that the mark on the cap pivot wiper faces up.
- Install the motor assembly rear wiper.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Install the arm assembly rear wiper. Ref. to WIPER AND WASHER SYSTEMS>REAR WIPER ARM>INSTALLATION .
- Install the rear gate trim. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
