Rear Wiper Arm: Installation

Install the arm assembly rear wiper.

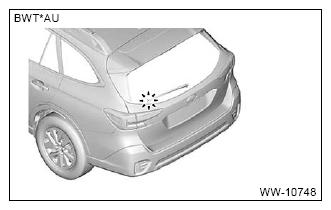

Assemble the blade assembly rear wiper aligning it with the marking on the glass.

Courtesy of SUBARU OF AMERICA, INC.

Tighten the arm assembly rear wiper to the specified torque, and install the cover rear wiper arm.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Operate the wiper to check whether the wiper blade aligns with the point mark. If not, perform installation over again.
