Rocker Cover RH

NOTE: When replacing a single part, perform the work with the engine assembly installed to body.
  1. When working on the vehicle
    NOTE: When working on the vehicle, perform the following steps also.
    1. Remove the striker assembly front hood. Ref. to EXTERIOR BODY PANELS>FRONT HOOD>DISASSEMBLY .
    2. Fully open the panel COMPL front hood. Ref. to REPAIR CONTENTS>NOTE>STAY ASSEMBLY FRONT HOOD .
    3. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
    4. Remove the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>REMOVAL .
    5. Remove the clip from the air intake boot, and loosen the clamp.
      G13223823Courtesy of SUBARU OF AMERICA, INC.
    6. Remove the air intake boot, and place it aside so that it does not interfere with the work.
      CAUTION: Be careful not to pull out the PCV hose.
      G13223824Courtesy of SUBARU OF AMERICA, INC.
    7. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>REMOVAL .
    8. Remove the pitching stopper. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION MOUNTING SYSTEM>REMOVAL>PITCHING STOPPER .
    9. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .
    10. Remove the nuts which secure the engine mounting to the Cross Member COMPL front.
      G11253160Courtesy of SUBARU OF AMERICA, INC.
    11. Lower the vehicle.
    12. Using the ST1, install the ST2 to the engine unit.

      Preparation tool:

      ST1: BOLT (18363AA050)

      ST2: HANGER (18360AA040)

      Tightening torque:

      43 N.m (4.4 kgf-m, 31.7 ft-lb)

      G13224415Courtesy of SUBARU OF AMERICA, INC.

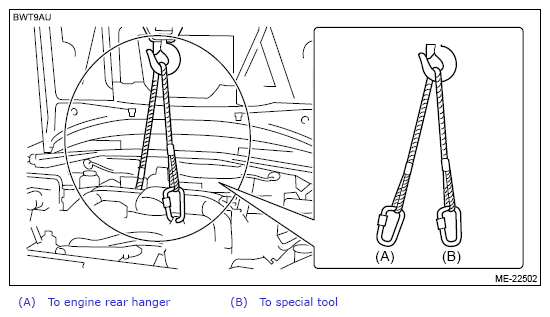

    13. Support the engine with a lifting device and wire ropes.
      G13867978Courtesy of SUBARU OF AMERICA, INC.
    14. While gradually lifting up the engine, set the ST between the engine mount RH and Cross Member COMPL front, and then slowly lower the engine.
      CAUTION:
      • When lifting up the engine, pay attention to the clearance of each part and be careful not to lift the engine too much, in order to prevent damaging the vehicle.
      • To avoid damaging the ST, be sure to set the ST as shown in the figure.
        G13867979Courtesy of SUBARU OF AMERICA, INC.
      • After lowering the engine, rock the engine to check that the ST does not come off.

      Preparation tool:

      ST: STAND ASSY (18632AA030)

      G13224418Courtesy of SUBARU OF AMERICA, INC.
    15. Remove the lifting device and wire ropes.
  2. Remove the #1 ignition coil and the 3 ignition coil. Ref. to IGNITION (H4DO)>IGNITION COIL>REMOVAL .

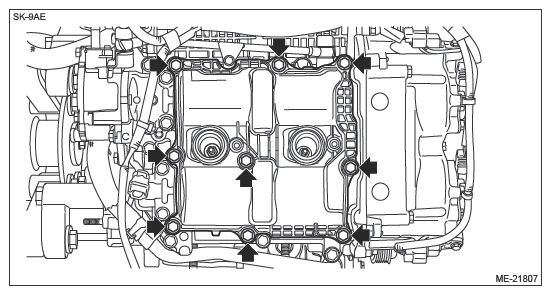

  3. Remove the rocker cover RH.
    G13224420Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the rocker cover gasket (ring type) from the cam carrier RH.

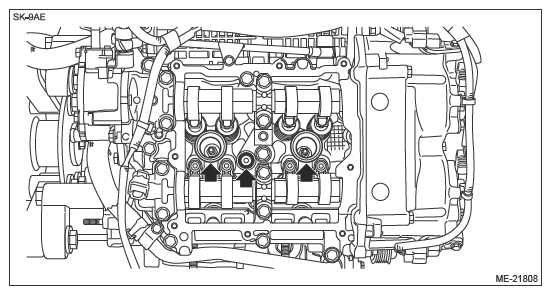

  5. Remove the spark plug pipe gasket, and remove the liquid gasket.
    CAUTION:

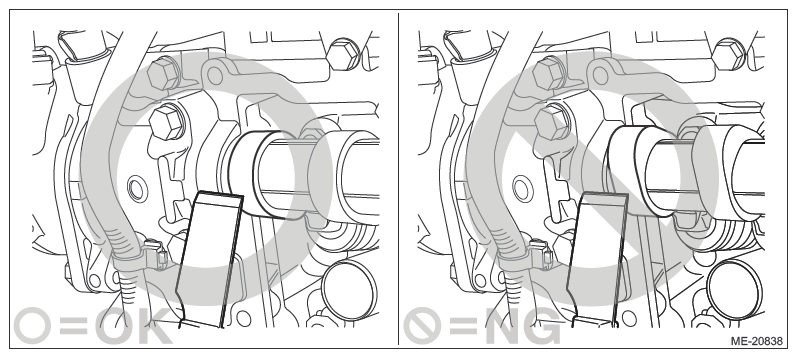

    • When removing the liquid gasket from engine unit using scraper, use special care not to damage the cam lobe of camshaft RH.
    • If the cam lobe of camshaft RH interferes, turn the crankshaft to the position where the scraper does not touch.
    G11253308Courtesy of SUBARU OF AMERICA, INC.
    G13224422Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the rocker cover gasket RH from the rocker cover RH, and remove the liquid gasket.
