Air Cleaner Case: Removal

  1. Disconnect the ground terminal from battery sensor, Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>REMOVAL .

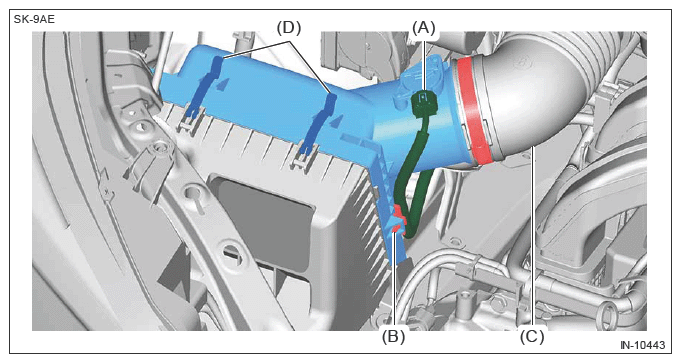

  3. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B).
  4. Disconnect the air intake boot (C), release the lock of the clip (D), and remove the air cleaner case (rear) and air cleaner element.
    G13224197Courtesy of SUBARU OF AMERICA, INC.

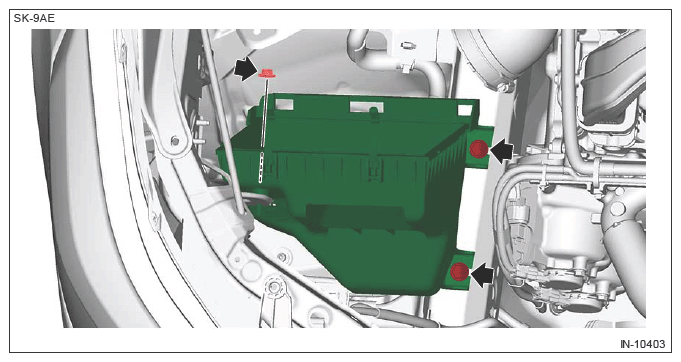

  5. Remove the air cleaner case (front).
    G13224198Courtesy of SUBARU OF AMERICA, INC.

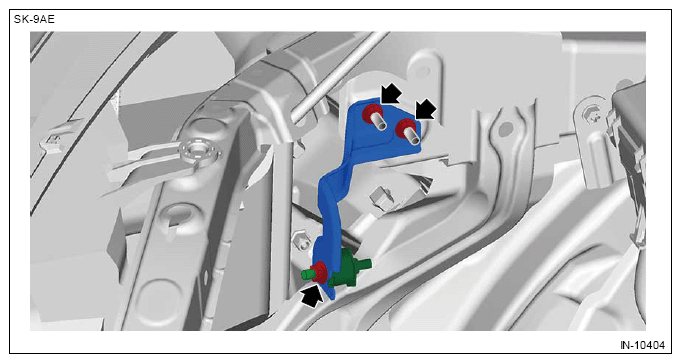

  6. Remove the cushion and remove the air cleaner case bracket.
    NOTE: Perform this procedure only when required.
    G13224199Courtesy of SUBARU OF AMERICA, INC.
