Forced Drive
If the lid assembly does not operate or the motor assembly is not supplied with power, move the lid assembly using the hexagon wrench.
Preparation tool:
Hexagon wrench: width across flat 4 mm (0.16 in)
CAUTION:
- After a forced operation, make sure to perform an initialize operation. Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>Sunroof Control System>OPERATION>INITIALIZE OPERATION .
- For removal and installation of the cover assembly stereo camera, refer to "REMOVAL" and "INSTALLATION" of "Stereo Camera" in the "EyeSight" service information and observe the precautions. Ref. to Stereo Camera .
- Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
- Remove the overhead console. (Models without EyeSight) Ref. to INSTRUMENTATION/DRIVER INFO>WARNING BOX>REMOVAL .
- Remove the cover assembly stereo camera. (Models with EyeSight) Ref. to EYESIGHT>STEREO CAMERA>REMOVAL .

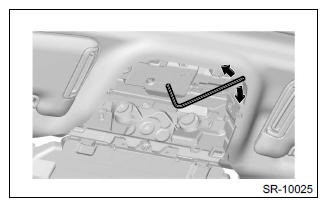

- Insert the hexagon wrench securely until it touches the motor shaft end.
- Turn the hexagon wrench to move the lid assembly.
- Turning right, the lid assembly opens.
- Turning left, the lid assembly closes.
CAUTION: Be careful not to damage the adjacent parts with the rod end when moving the lid assembly with the hexagon wrench. - Install the overhead console. (Models without EyeSight) Ref. to INSTRUMENTATION/DRIVER INFO>WARNING BOX>INSTALLATION .
- Install the cover assembly stereo camera. (Models with EyeSight) Ref. to EYESIGHT>STEREO CAMERA>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
