USB Power Supply

FRONT

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
NOTE:
- Shift the select lever into "N" before disconnecting the ground terminal from the battery sensor.
- On power seat models, move the front seat all the way forward before disconnecting the ground terminal from the battery sensor.
Remove the cover assembly front and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .

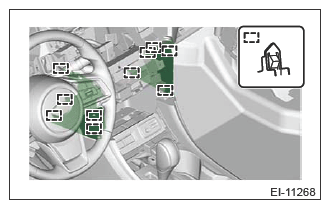

Remove the cover instrument panel CTR.

Courtesy of SUBARU OF AMERICA, INC.

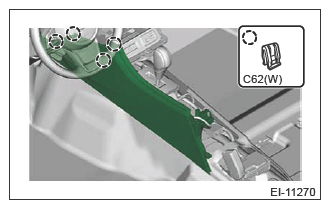

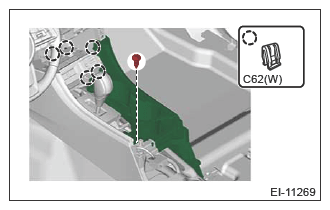

Remove the cover center side.

Release the claws and clips and pull the cover center side RH to remove.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

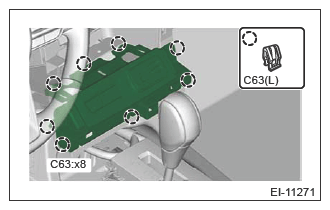

Remove the switch panel front.

Courtesy of SUBARU OF AMERICA, INC.

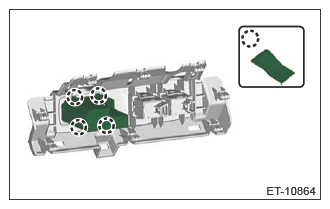

Remove the AUX unit assembly.
1. While pressing the claw, press it in from the rear to remove the AUX unit assembly.

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the cover rear console assembly and the AUX unit assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>DISASSEMBLY .

REAR

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

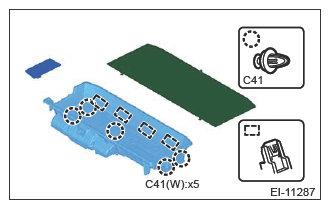

Remove the floor mat side, floor mat center, and box sub-trunk assembly.

Courtesy of SUBARU OF AMERICA, INC.

Remove the third-row seats. Ref. to SEATS>Third Seat>REMOVAL .
Remove the trim panel assembly apron RH. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .

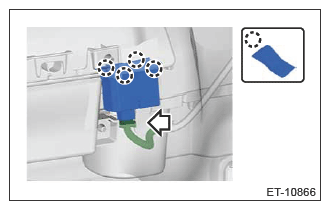

Remove the AUX unit assembly.
1. Disconnect the connector.
2. While pressing the claw, press it in from the rear to remove the AUX unit assembly.

Courtesy of SUBARU OF AMERICA, INC.
