Console Box: Disassembly

  1. Release the clips and remove the cover rear console assembly.
  2. Disconnect the connector.
    G13201621Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the screws and remove the lid assembly console.
    G13201622Courtesy of SUBARU OF AMERICA, INC.
  4. Release the claws and remove the console box LWR front.
    G13201623Courtesy of SUBARU OF AMERICA, INC.

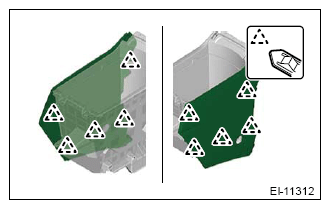

  5. Release the claws and remove the console box LWR.
    G13201624Courtesy of SUBARU OF AMERICA, INC.

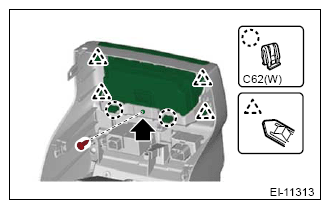

  6. Remove the screws and release the claws, then detach the switch panel assembly console.
    G13201625Courtesy of SUBARU OF AMERICA, INC.

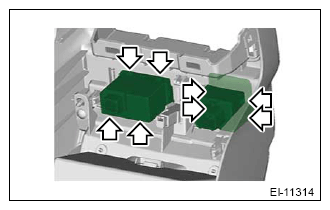

  7. Release the claws and remove the AUX unit center and the socket assembly AC 120 V.
    G13201626Courtesy of SUBARU OF AMERICA, INC.
