Water Tank Pipe Assembly

WARNING: This page is about a different variant/trim than selected.
CAUTION: If the engine coolant is spilt over the engine or the exhaust pipe, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Connect the water hose.
    G13620534Courtesy of SUBARU OF AMERICA, INC.
  2. Install the engine coolant temperature sensor to the water tank pipe assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Engine Coolant Temperature Sensor>INSTALLATION .
  3. Connect the water hose (A) and preheater hose (B) to the water tank pipe assembly.
    G12726878Courtesy of SUBARU OF AMERICA, INC.
  4. Set new O-rings.
    G13620545Courtesy of SUBARU OF AMERICA, INC.
  5. Install the water tank pipe assembly and the water hose as an assembly.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    G12726877Courtesy of SUBARU OF AMERICA, INC.

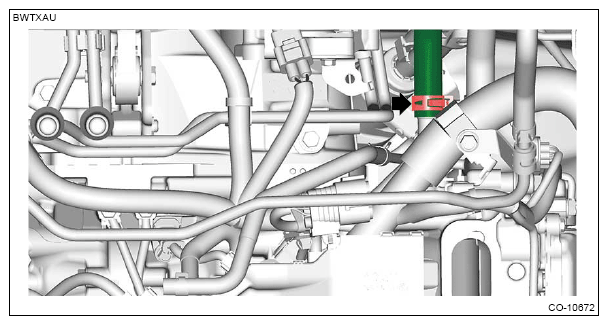

  6. Connect the hose heater inlet.
    G13620531Courtesy of SUBARU OF AMERICA, INC.

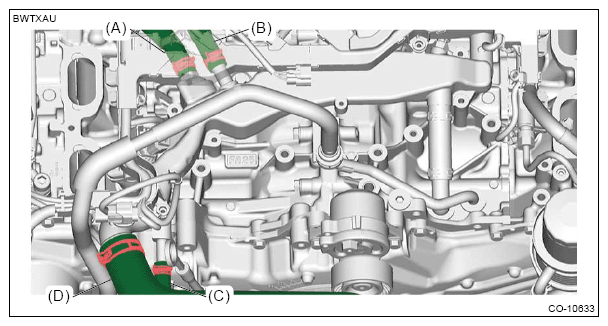

  7. Connect the water hose (A), water hose (B), water hose (C) and radiator inlet hose (D).
    G13620530Courtesy of SUBARU OF AMERICA, INC.

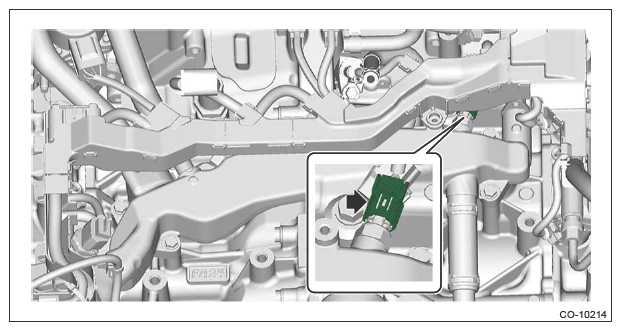

  8. Connect the connector to engine coolant temperature sensor.
    G12726874Courtesy of SUBARU OF AMERICA, INC.
  9. Install the high-pressure fuel delivery pipe assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>High Pressure Fuel Delivery Pipe>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .
  10. Install the EGR pipe. Refer to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>EGR Pipe>INSTALLATION .
  11. Install the intake manifold assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold Assembly>INSTALLATION .
  12. Install the generator. Refer to STARTING/CHARGING SYSTEMS (H4DOTC)>Generator>INSTALLATION .
  13. Install the A/C compressor. Refer to AIR CONDITIONER>Compressor>INSTALLATION .
  14. Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  15. Fill engine coolant. Refer to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>FILLING OF ENGINE COOLANT .
