Sunroof Assembly: Assembly

  1. Install the drain plate and the cable assembly.

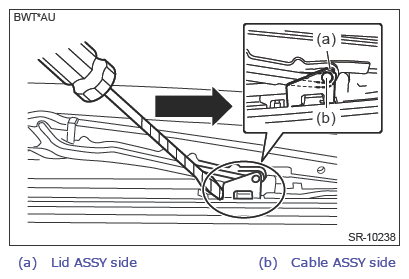

  2. Using a flat tip screwdriver wrapped with protective tape, move the cable assembly to the foremost position of the lid assembly.
    G13625836Courtesy of SUBARU OF AMERICA, INC.
  3. Install the shade assembly. Refer to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>Sunshade>INSTALLATION .
