Console Front

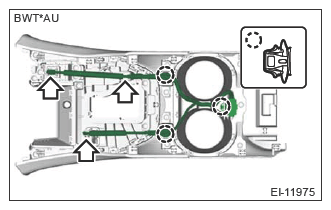

  1. Remove the cord assembly console.
    1. Disconnect the harness connector.
    2. Release the clamp and remove the cord assembly console.
      G13625980Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the switch assembly VIEW. (Model with VIEW switch) Refer to ENTERTAINMENT & MONITORING>Switches and Harness>REMOVAL>VIEW BUTTON .
  3. Remove the screws to remove the switch assembly EPB. Refer to PARKING BRAKE>Parking Brake Switch>REMOVAL .

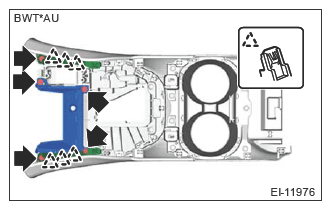

  4. Remove the reinforce cover front and tray center UPR.
    1. Remove the screws and release the clips, then detach the reinforce cover front.
    2. Remove the screws and remove the tray center UPR.
      G13625981Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the screws and release the clips, then detach the indicator assembly or cover front panel.
    G13625982Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the screw and remove the cup holder.
    G13625983Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the ring cover front and ring cup holder as necessary.
