Parking Brake Switch: Removal
- Disconnect the ground terminal from battery sensor.
Refer to REPAIR CONTENTS>NOTE>BATTERY
.NOTE: Release the shift lock and shift the select lever to the "N" position. Refer to CONTROL SYSTEMS>Select Lever>REMOVAL .
- Remove the cover assembly front. Refer to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .

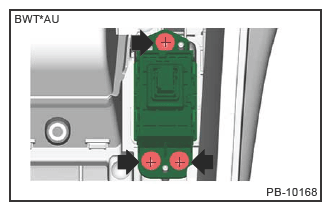

- Remove the screws to remove the switch assembly EPB.
