Sedan Model

CAUTION:
  • Before handling the airbag system components, refer to AIRBAG SYSTEM>General Description>CAUTION .
  • Side impact sensor (under the rear center seat) for the airbag system is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the rear seat cushion assembly and pad rear side. Refer to SEATS>Rear Seat>REMOVAL .
  3. Remove the trim panel assembly C pillar. Refer to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL>SEDAN MODEL .
  4. Remove the trim panel assembly rear shelf. Refer to EXTERIOR/INTERIOR TRIM>Rear Shelf Trim>REMOVAL .

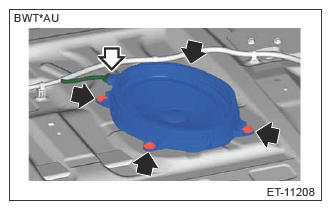

  5. Remove the speaker assembly woofer.
    1. Disconnect the connector.
    2. Remove the bolts and remove the speaker assembly woofer.
    G13622975Courtesy of SUBARU OF AMERICA, INC.
