Seat Position Memory Control Module (With Seat Position Memory)

  1. Prior to starting work, check the following precautions. Refer to SEATS>General Description>CAUTION .
  2. Raise the seat cushion by operating the switch.
  3. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  4. Remove the driver's seat, Refer to SEATS>Front Seat>REMOVAL

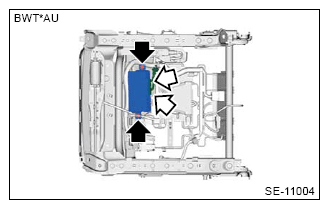

  5. Remove the ECM seat memory.
    1. Remove the cover ECM seat memory.
    2. Disconnect the connector.
    3. Remove the nuts and remove the ECM seat memory.
      G13625531Courtesy of SUBARU OF AMERICA, INC.
