Exploded View

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

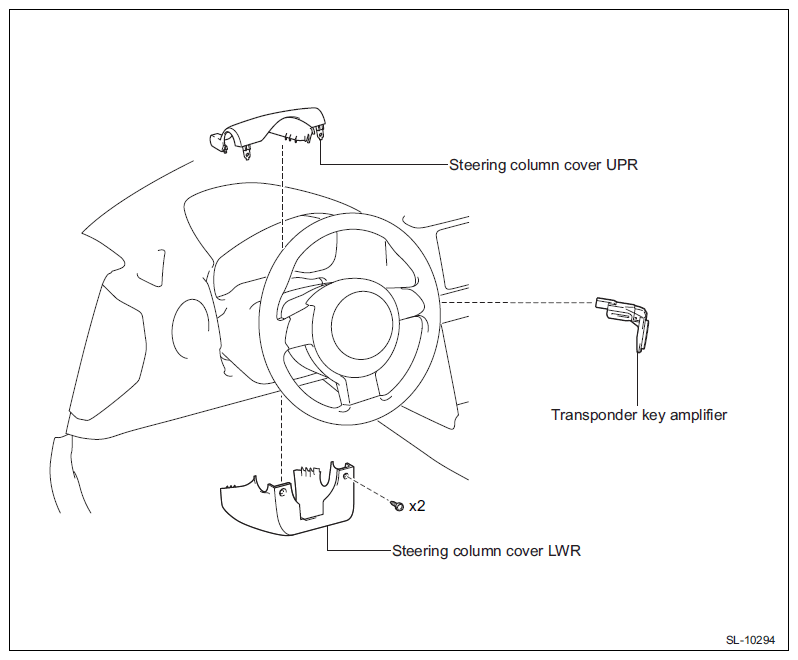

G11261588Courtesy of SUBARU OF AMERICA, INC.

Removal

  1. Removal of the steering column cover LWR (Refer to INSTALLATION )
  2. Removal of the steering column cover UPR (Refer to INSTALLATION )
  3. Removal of the transponder key amplifier
    1. Disconnect the connector.
    2. Release the two claws by using a fine flat tip screwdriver wrapped with protective tape, and remove the transponder key amplifier.

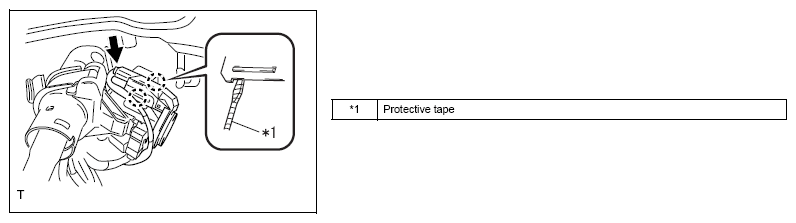

      G12589520Courtesy of SUBARU OF AMERICA, INC.
