Wiper Switch: Installation

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

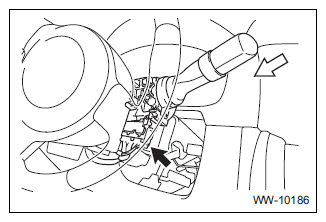

G11262908Courtesy of SUBARU OF AMERICA, INC.
  1. Installation of the windshield wiper switch ASSY
    1. Fit in the tab and install the windshield wiper switch ASSY in the direction of the arrow in the figure.
    2. Connect each connector.
  2. Installation of the steering column cover UPR
    1. Fit in the tabs and install the steering column cover UPR on the steering column ASSY.
  3. Installation of the steering column cover LWR
    1. Fit in the 6 tabs and install the steering column cover LWR.
    2. Turn the steering wheel left and right, and using 2 screws, secure the steering column cover LWR.
  4. Installation of the steering column cover support (when there is smart entry)
    1. Fit in the 4 tabs and install the steering column cover support.
  5. Installation of the instrument panel meter ornament UPR (Refer to INSTALLATION )
  6. Installation of the meter hood SUB-ASSY (Refer to INSTALLATION )
  7. Installation of the instrument cluster finish panel SUB-ASSY CTR (Refer to INSTALLATION )
  8. Installation of the instrument panel under cover SUB-ASSY No. 1 (Refer to INSTALLATION )
  9. Installation of the instrument side panel LH (Refer to INSTALLATION )
